Description:

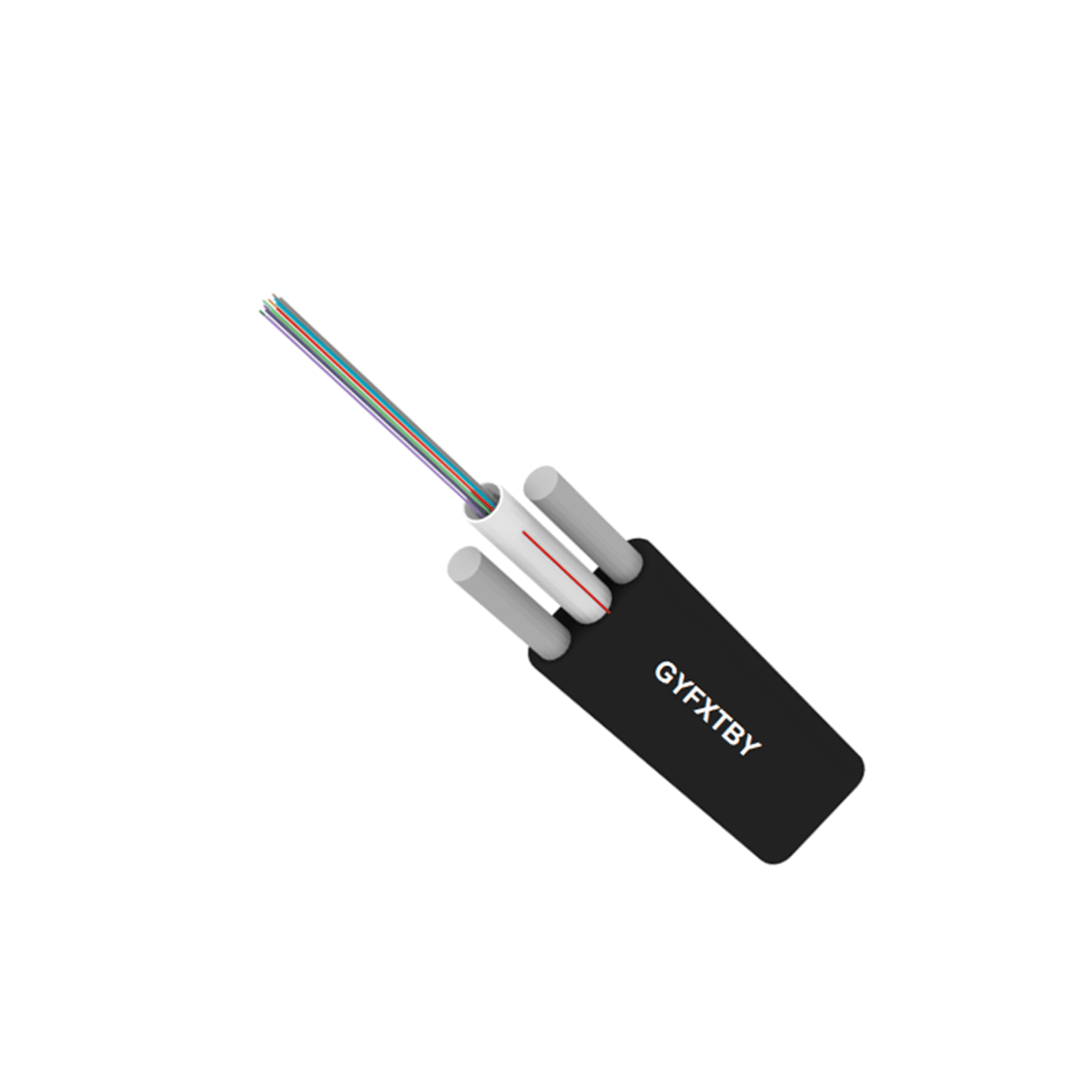

GYFXTBY is a non-metallic aerial fiber optic cable with a flat structure. It has 2 FRP that are on both sides of parallel as its strength member. It is constructed with central loose tube with multiple 250µm optical fibers and is filled with a water-resistant compound.It's specifically designed for overhead installation to transmit optical signals.
| MOQ： | 1 KM | Packaging: | Wooden drum |
| Delivery Time: | 7-15 working days | Brand Name: | SoctFiber |
| Supply Ability: | 5000KM/month | Model Number: | GYFXTBY |
| Place of Origin: | Jiangsu,China | Certification: | ISO9001 |
Detail Information:
| Fiber Count: | 1-12 |
| Fiber Type: | G652D,G655D,OM1,OM2 |
| Fiber Brand: | YOFC,HTGD |
| OEM: | Yes |
| Application: | Aerial installations, FTTH |
| Structure | Flat |
| Maximum fiber | 12 cores |
| strength member | FRP |
Features:
- Tensile Strength: 2 Parallel FRP allow the cable stand with high tensile forces, making it ideal for applications requiring good strength and reliability.
- Non-metallic construction: Reduces the environmental impact compared to metallic cables.
- Loose tube structure: Protects individual optical fibers from micro-bending, ensuring reliable signal transmission.
- Corrosion resistance: Minimizes maintenance requirements and extends the cable's lifespan.
- Easy Installation: GYFXTBY cables are lightweight and flexible, making them easy and quick to install. They can be easily deployed for both aerial and burial applications.
Technical Parameters:
| No. of cable | 1-12 | ||
| Fiber Model | G652D | ||
| Loose tube | Material | PBT | |
| Thickness | 0.35（±0.05）mm | ||
| Diameter | 2.0（±0.1）mm | ||
| Color | Natural | ||
| Strength Member | Material | FRP | |
| Diameter | 1.5（±0.05）mm | ||
| No. | 2 | ||
| Outer Sheath | Material | MDPE | |
| Color | Black | ||
| Cable Diameter | (4.0±0.2)×(8.0±0.2)mm | ||
| Cable Weight | 32（±5）kg/km | ||
| Max. allowable tension（Short-term） | 1335N | ||
| Max. allowable tension（Long-term） | 405N | ||
| Crush resistance test | 1000N/10cm | ||
| Min. bending radius | Static | 20x cable Ø | |
| dynamic | 10x cable Ø | ||
| Temperature range（℃） | Installation | -30~+70 | |
| Transport&Storage | -40~+70 | ||
| Operation | -40~+70 | ||
G652D Fiber Data Sheet :
| FIBER PERFORMANCE（ITU-G.652） | Item | Specifications | |
| Mode field diameter（μm） | 1310nm 9.2±0.4 | ||
| 1550nm 10.5±0.4 | |||
| Coating diameter（μm） | 245±7 | ||
| Coating non-circularity （%） | ＜6.0 | ||
| Mode field /cladding concentricity error （μm） | ≤0.6 | ||
| Cladding diameter（μm） | 125.0±1 | ||
| Cladding non-circularity （%） | ＜1.0 | ||
| Attenuation（dB/Km） | 1310mm ≤0.36 | ||
| 1550nm ≤0.22 | |||
| 1625nm ≤0.24 | |||
| Cut-off wavelength （nm） | 2m（λc） 1150~1330 | ||
| 20m cable +2m fiber （λcc） ＜1260 | |||
| Dispersion | Zero dispersion wavelength（m） 1300~1322 | ||
| Zero dispersion slope（ps/nm2.Km） ≤0.092 | |||
| Chromatic dispersion (Ps/nm2.Km) | 1285~1330nm ≤3.1 | ||
| 1550nm ≤18 | |||
| 1625nm ≤22 | |||
| Fiber color | blue, orange, green, brown, slate, white, red, black, yellow, violet, pink and aqua | ||
Fiber Colors:
| NO. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| NO. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Production workshop：
Quality verification：
Packaging:
FAQ:
Q1: How to choose the right optical cable?
Choosing an optical cable requires considering factors such as transmission distance, data rate, environmental conditions, and connection methods. You can provide your specific requirements, and our professional technical team will recommend the suitable optical cable products for you.
Q2: What’s the MOQ?
The MOQ of Fiber Optic cable depends on the product model and customer needs. You can consult our sales personnel for more details.
Q3: What’s delivery time?
Our delivery time is generally 7-15 working days. The specific delivery time will be determined based on the order quantity and production schedule.
Q4: Why are optical cable prices on the market so varied?
The price differences in optical cables are the result of multiple factors. When choosing optical cables, you should consider price, quality, brand, and after-sales service comprehensively to select products that meet your needs.
Q5: Is it possible to customize optical cables with special specifications?
Absolutely! We will have detailed discussions with you to understand your needs. Then, our engineers will design the optimal solution based on your requirements. We will produce samples for your testing and confirmation. Finally, we will arrange mass production according to your confirmation.
