Description:

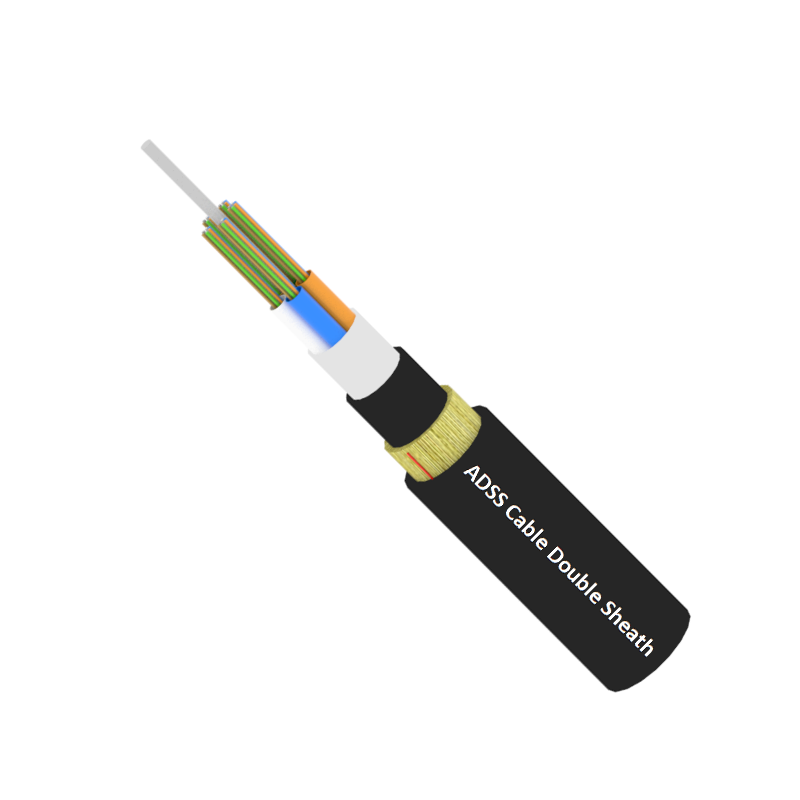

This ADSS Cable Double Sheath does not require supporting structures such as steel cables or pipes, and can be directly hung on power facilities such as utility poles and light poles. The structural feature is that the 250µm optical fiber is wrapped in a loose tube made of PBT, which contains a filling compound. The center of the optical cable is a fiber reinforced plastic (FRP) central reinforcement member to increase the strength of the optical cable. The water-blocking layer includes water-blocking yarn and water-blocking tape. Dtex aramid is used on the inside of the outer sheath, and the optical cable is equipped with 2 Ripcords. The double outer sheaths are PE jacket or AT jacket.
| MOQ： | 1 KM | Packaging: | Wooden drum |
| Delivery Time: | 3-15 working days | Brand Name: | SoctFiber |
| Supply Ability: | 10000KM/month | Model Number: | ADSS Cable Double Sheath |
| Place of Origin: | Jiangsu,China | Certification: | ISO9001 |
Detail Information:
| Fiber Count: | 2-72 |
| Fiber Type: | G652D,G655D,OM1,OM2 |
| Fiber Brand: | YOFC,HTGD |
| OEM: | Yes |
| Application: | Aerial |
Features:
- Widely used in power systems, communication lines, railways, etc.
- High tensile strength, stable mechanical properties
- UV and corrosion resistance
- High quality materials, long life
Technical Parameters:
| Cable fiber count | / | 2~30 | 32~60 | 62~72 | ||
| Structure | / | 1+5 | 1+5 | 1+6 | ||
| Fiber style | / | G.652D | ||||
| Central strength member | material | mm | FRP | |||
| Diameter (average) | 1.5 | 1.5 | 2.1 | |||
| Loose Tube | Material | mm | PBT | |||
| Diameter (average) | 1.8 | 2.1 | 2.1 | |||
| Thickness(average) | 0.32 | 0.35 | 0.35 | |||
| Max fiber/loose tube | 6 | 12 | 12 | |||
| Tubes color | Full color identification | |||||
| Fiber excess length | % | 0.7~0.8 | ||||
| Water resistance | Material | / | Cable jelly | |||
| Inner sehath | material | mm | MDPE | |||
| Inner sheath | 0.9mm | |||||
| Non-metallic strengthen components | Material | / | Aramid Yarn | |||
| Outer sheath | material | mm | HDPE | |||
| Outer sheath | 1.8mm | |||||
| Cable diameter(average) | mm | 10.9 | 11.5 | 12.1 | ||
| Cable weight (Approximate) | kg/km | 95 | 110 | 120 | ||
| Cable Sectional area | mm2 | 93.31 | 103.87 | 114.99 | ||
| Attenuation coefficient(Max) | 1310nm | dB/km | 0.35 | |||
| 1550nm | 0.21 | |||||
| Rated Tensile Strength(RTS) | kn | 6 | ||||
| Max allowed tension( MAT) | kn | 2.5 | ||||
| Annual average operating tension (EDS) | kn | 3.2 | ||||
| Young's modulus | kn/mm2 | 7.8 | ||||
| Coefficient of thermal expansion | 10-6/℃ | 9 | ||||
| Crush resistance | Long term | N/100mm | 1100 | |||
| Short term | 2200 | |||||
| Permission Bent Radius | static | mm | 15 of OD | |||
| dynamic | 20 of OD | |||||
| Temperature | When laying | ℃ | -20~+60 | |||
| Storage and transportation | -40~+70 | |||||
| running | -40~+70 | |||||
| Scope of application | Suitable for voltage level under 110kV, wind speed below 25m/s, icing 5mm | |||||
| Cable Marks | Printing according to customer's requirements | |||||
G652D Fiber Data Sheet :
| FIBER PERFORMANCE （ITU-G.652） | Item | Specifications | |
| Mode field diameter（μm） | 1310nm 9.2±0.4 | ||
| 1550nm 10.5±0.4 | |||
| Coating diameter（μm） | 245±7 | ||
| Coating non-circularity （%） | ＜6.0 | ||
| Mode field /cladding concentricity error （μm） | ≤0.6 | ||
| Cladding diameter（μm） | 125.0±1 | ||
| Cladding non-circularity （%） | ＜1.0 | ||
| Attenuation（dB/Km） | 1310mm ≤0.36 | ||
| 1550nm ≤0.22 | |||
| 1625nm ≤0.24 | |||
| Cut-off wavelength （nm） | 2m（λc） 1150~1330 | ||
| 20m cable +2m fiber （λcc） ＜1260 | |||
| Dispersion | Zero dispersion wavelength（m） 1300~1322 | ||
| Zero dispersion slope（ps/nm2.Km） ≤0.092 | |||
| Chromatic dispersion (Ps/nm2.Km) | 1285~1330nm ≤3.1 | ||
| 1550nm ≤18 | |||
| 1625nm ≤22 | |||
| Fiber color | blue, orange, green, brown, slate, white, red, black, yellow, violet, pink and aqua | ||
Fiber Colors:
| NO. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| NO. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Packing:
| Fiber | Cable length km | N.W. ( Approximate) kg | G.W. (Approximate) kg | Wooden drum packing size cm |
| 2-30 | 2 | 140 | 190 | 90×90×70 |
| 3 | 210 | 265 | 100×100×70 | |
| 4 | 280 | 340 | 100×100×70 | |
| 32-60 | 2 | 160 | 215 | 100×100×70 |
| 3 | 240 | 300 | 110×110×70 | |
| 4 | 320 | 395 | 125×125×70 | |
| 60-72 | 2 | 180 | 235 | 100×100×70 |
| 3 | 270 | 330 | 110×110×70 | |
| 4 | 360 | 435 | 125×125×70 | |
| 96 | 2 | 210 | 270 | 110*110*70 |
| 3 | 315 | 375 | 125*125*70 | |
| 4 | 420 | 500 | 125*125*90 | |
| 144 | 2 | 250 | 325 | 125*125*70 |
| 3 | 375 | 465 | 140*140*85 | |
| 4 | 500 | 605 | 160*160*105 | |
| Packing information | Wooden drum , or iron drums or as the customer’s requirement | |||

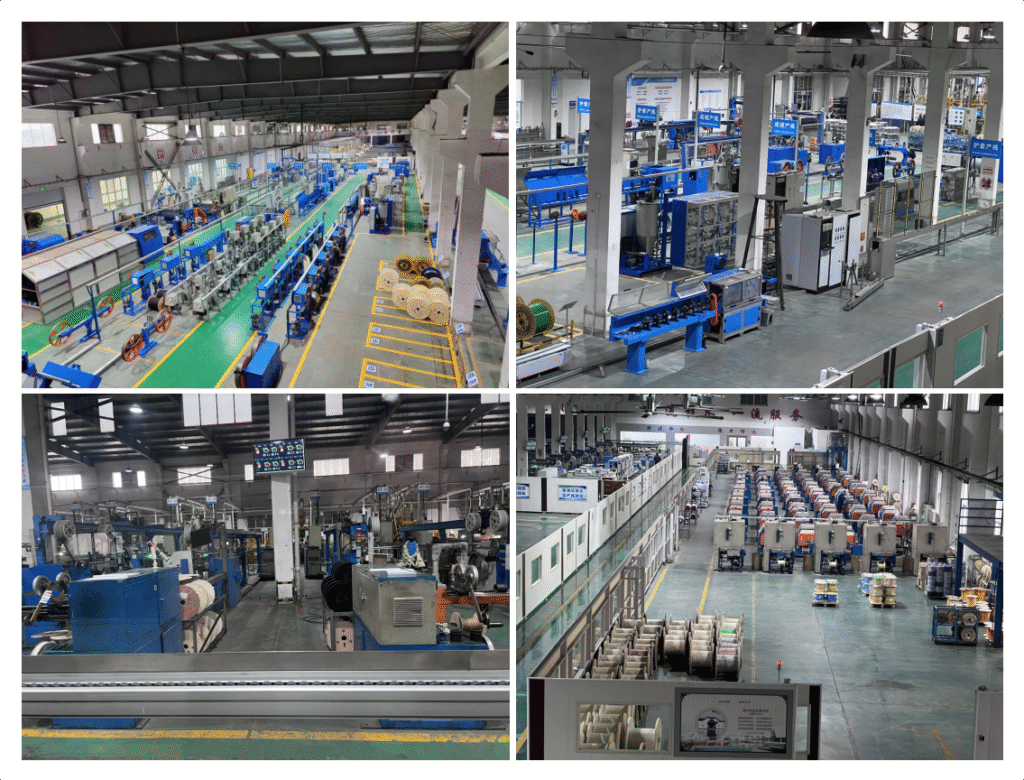

Production workshop：

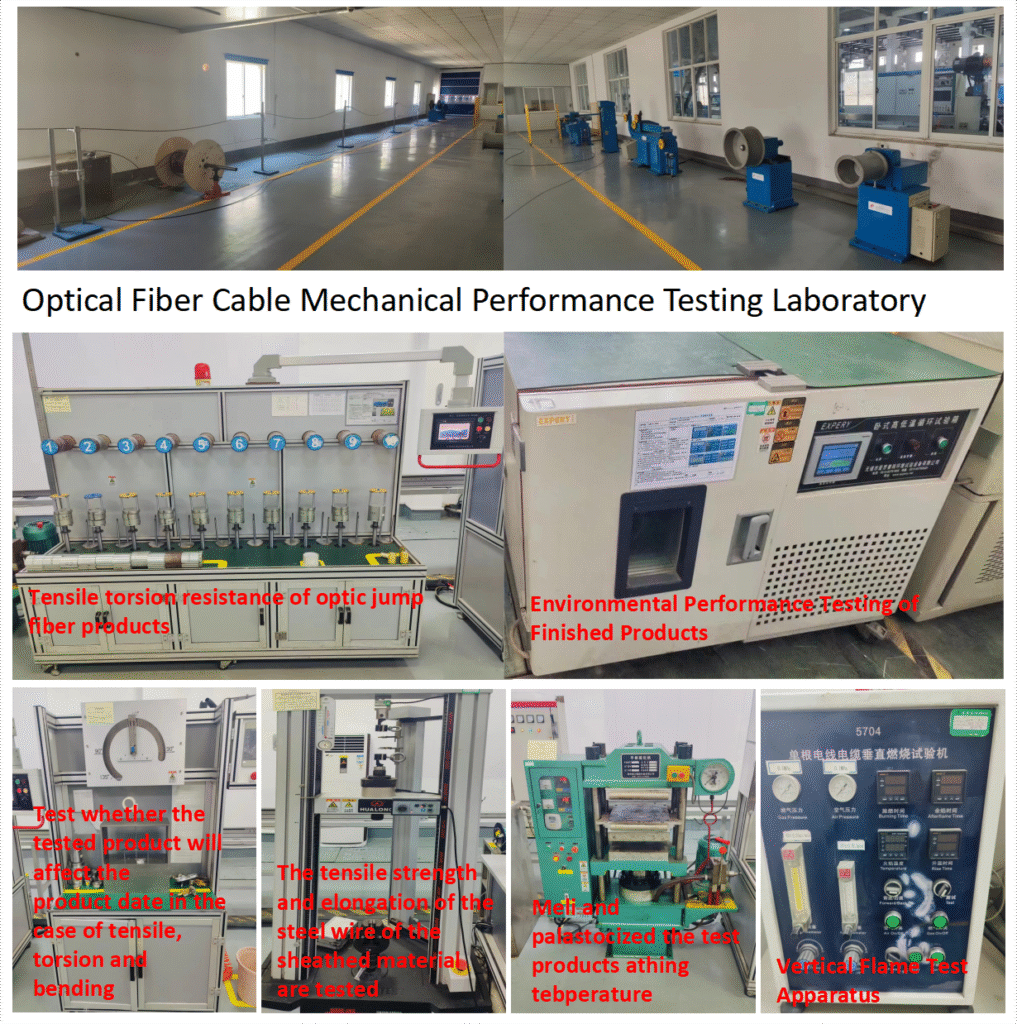

Quality verification：

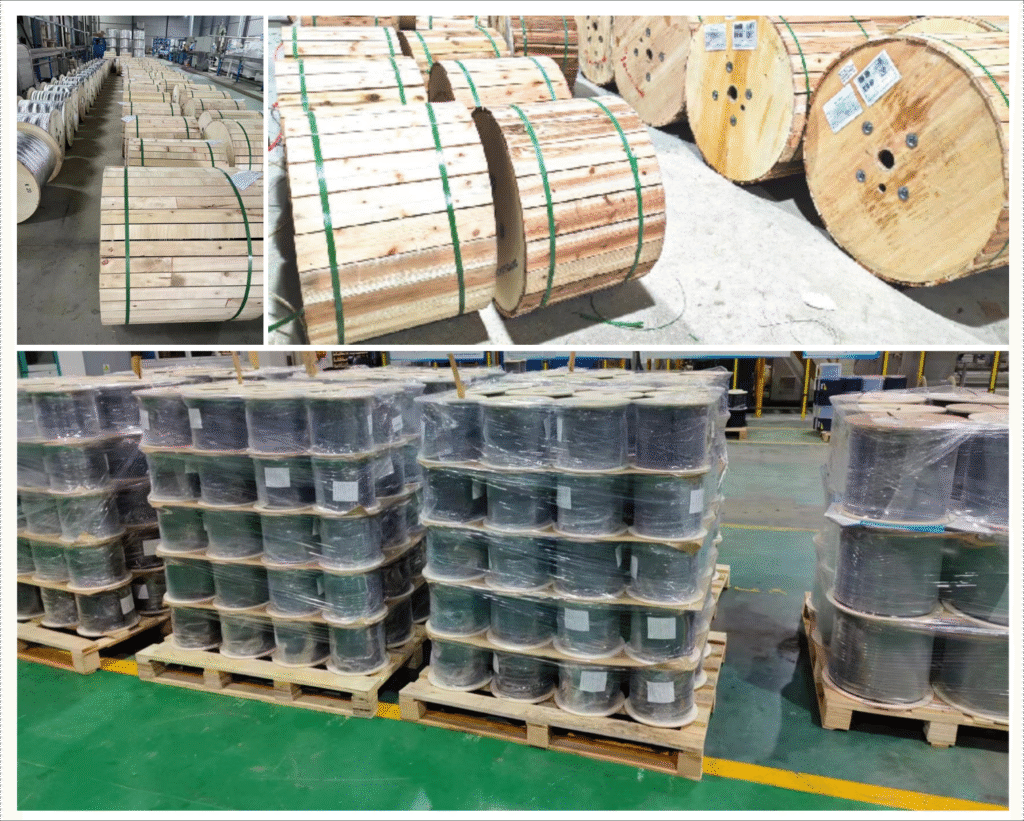

Packaging:
