Description:

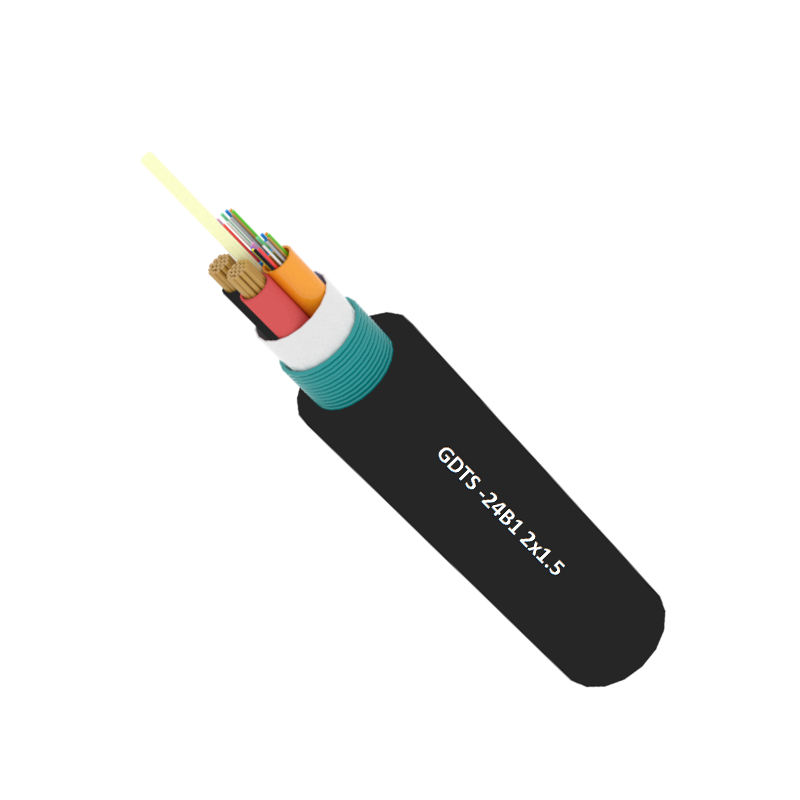

The hybrid fiber cable is specifically designed for mobile operators implementing Remote Radio Unit (RRU) architecture, providing a streamlined solution that combines both optical fiber and copper conductor. This versatile cable is ideal for outdoor applications that require simultaneous data transmission and power delivery. The hybrid cable integrates optical fiber (either multi-mode or single mode) with copper wire, enabling the transmission of both light signals and DC power through a single lightweight, aluminum-corrugated structure. It’s particularly effective for cellular sites, reducing installation complexities and eliminating the need for additional grounding, making it suitable for custom applications and diverse deployment scenarios.
| MOQ： | 1 KM | Packaging: | Wooden drum |
| Delivery Time: | 7-15 working days | Brand Name: | SoctFiber |
| Supply Ability: | 5000KM/month | Model Number: | GDTS 24B1+2*1.5 |
| Place of Origin: | Jiangsu,China | Certification: | ISO9001 |
Detail Information:
| Fiber Count: | 2-24 |
| Fiber Type: | G652D,G655D,OM1,OM2 |
| Fiber Brand: | YOFC,HTGD |
| OEM: | Yes |
| Application: | Mobile Networks |
| Armored | Armored Steel tape |
| Central strength member | FRP |
| Jacket | PE Jacket |
| Electric cable | Copper strand |
| Conductor cross-section (mm²) | 0.5 mm² |
Features:
- Dual Transmission: Supports both optical fiber and copper conductor, allowing for light signal transmission and power delivery in one cable.
- Cost-Efficient Installation: Simplifies installation and lowers expenses by removing the need for extra grounding.
- Durability for Outdoor Use: Engineered with a lightweight aluminum corrugated design, ideal for demanding environments.
- Power Capability: Copper conductor supports low data rate data transmission and powers remote electronics, facilitating central monitoring and maintenance.
- Customizable: Cables can be tailored to meet specific application needs.
- Fast Delivery: Factory-direct, fast, and customizable delivery options to meet customer requirements.
Technical Parameter:
| Cable Type | Fiber Counts | Cable Diameter (mm) | Weight (KG/KM) | Tensile Strength (N) | Crush Resistance (N/100mm) | ||
| Long term | Short trem | Long term | Short trem | ||||
| GDTS-2*1.5 | 2-24 | 11.3 | 133 | 600 | 1500 | 300 | 1000 |
| GDTS-2*2.5 | 2-24 | 12.2 | 167 | 600 | 1500 | 300 | 1000 |
| GDTS-2*4.0 | 2-24 | 13.3 | 215 | 600 | 1500 | 300 | 1000 |
| GDTS-2*5.0 | 2-24 | 14.6 | 262 | 600 | 1500 | 300 | 1000 |
| GDTS-2*6.0 | 2-24 | 15.5 | 288 | 600 | 1500 | 300 | 1000 |
| GDTS-2*8.0 | 2-24 | 16.4 | 355 | 600 | 1500 | 300 | 1000 |
Technical Specification:
| No. of cable | 24 | |
| Fiber Model | G.652D | |
| Design(StrengthMember+Tube&Filler) | 1+4 | |
| Central Strength Member | Material | FRP |
| Diameter（±0.05）mm | 1 | |
| Electric cable | Conductor cross-section (mm²) | 0.5 |
| Conductor type | Copper strand | |
| Insulationg material | Crosslinked polyethylene | |
| Rated voltage(V) | 300/400 | |
| Material | PVC | |
| Diameter（±0.2）mm | 2 | |
| Color | Red 、Green | |
| Loose Tube | Material | PBT |
| Diameter（±0.06）mm | 2 | |
| Thickness（±0.03）mm | 0.35 | |
| The Max.Core NO./Tube | 12 | |
| Corrugated Steel Tape | Material | Coated two sides high carbon steel tape |
| Thickness（±0.01）mm | Steel:0.15mm, coating:0.05mm | |
| Outer Sheath | Material | PE |
| Thickness（±0.2）mm | 1.8 | |
| Cable Diameter（±0.2）mm | 7.1 | |
| Cable Weight（±5）kg | 45 | |
| Min. bending radius | Without Tension | 10.0×Cable-φ |
| Under Maximum Tension | 20.0×Cable-φ | |
| Temperature range（℃） | Installation | -5~+50 |
| Transport&Storage | -40~+70 | |
| Operation | -30~+70 | |
G652D Fiber Data Sheet :
| FIBER PERFORMANCE（ITU-G.652） | Item | Specifications | |
| Mode field diameter（μm） | 1310nm 9.2±0.4 | ||
| 1550nm 10.5±0.4 | |||
| Coating diameter（μm） | 245±7 | ||
| Coating non-circularity （%） | ＜6.0 | ||
| Mode field /cladding concentricity error （μm） | ≤0.6 | ||
| Cladding diameter（μm） | 125.0±1 | ||
| Cladding non-circularity （%） | ＜1.0 | ||
| Attenuation（dB/Km） | 1310mm ≤0.36 | ||
| 1550nm ≤0.22 | |||
| 1625nm ≤0.24 | |||
| Cut-off wavelength （nm） | 2m（λc） 1150~1330 | ||
| 20m cable +2m fiber （λcc） ＜1260 | |||
| Dispersion | Zero dispersion wavelength（m） 1300~1322 | ||
| Zero dispersion slope（ps/nm2.Km） ≤0.092 | |||
| Chromatic dispersion (Ps/nm2.Km) | 1285~1330nm ≤3.1 | ||
| 1550nm ≤18 | |||
| 1625nm ≤22 | |||
| Fiber color | blue, orange, green, brown, slate, white, red, black, yellow, violet, pink and aqua | ||
Fiber Colors:
| NO. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| NO. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Production workshop：
Quality verification：
Packaging:
FAQ:
Q1: How to choose the right optical cable?
Choosing an optical cable requires considering factors such as transmission distance, data rate, environmental conditions, and connection methods. You can provide your specific requirements, and our professional technical team will recommend the suitable optical cable products for you.
Q2: What’s the MOQ?
The MOQ of Fiber Optic cable depends on the product model and customer needs. You can consult our sales personnel for more details.
Q3: What’s delivery time?
Our delivery time is generally 7-15 working days. The specific delivery time will be determined based on the order quantity and production schedule.
Q4: Why are optical cable prices on the market so varied?
The price differences in optical cables are the result of multiple factors. When choosing optical cables, you should consider price, quality, brand, and after-sales service comprehensively to select products that meet your needs.
Q5: Is it possible to customize optical cables with special specifications?
Absolutely! We will have detailed discussions with you to understand your needs. Then, our engineers will design the optimal solution based on your requirements. We will produce samples for your testing and confirmation. Finally, we will arrange mass production according to your confirmation.
