Description:
The joint box fiber optic is an indispensable device in the FTTx network. It connects the incoming optical cable and the feeder optical cable to realize the branching and distribution of optical signals. By installing the adapter, the optical cable box can lead out the signal of the incoming optical cable to realize the direct or branch connection of the optical cable, and also protect the optical cable and pigtail.
Technical parameters:
| Model No. | SFDB-24B | Color | Black, Grey White.. |
| Capacity | 24cores | Material | PC+ABS, ABS |
| Dimension(L*W*D,MM) | 316*274*102 | Flame retardant performance | Non-flame retardant |
| Protection Level | IP68 | Splitter | 1:8 &1:16 |

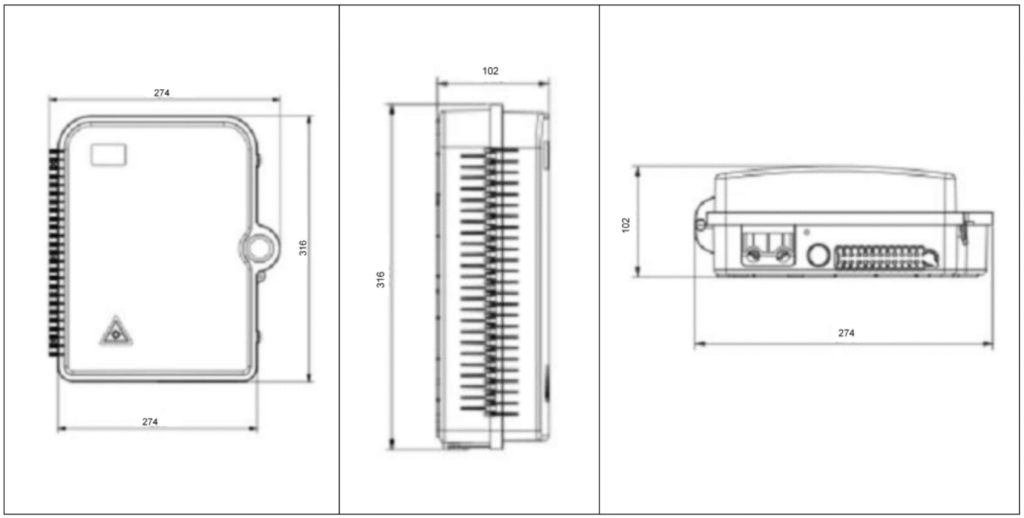

The dimension diagram:(mm)
Features:
- High-quality engineering plastics are used to ensure the strength and durability of the box.
- Independent sealing design effectively prevents dust and moisture from intruding.
- The fusion area and wiring area are separated for easy management and maintenance.
- 24-port SC-APC, LC-UPC pigtails and adapters can be installed, and an additional 24F fusion tray can be selected.
- IP68, suitable for various harsh environments.

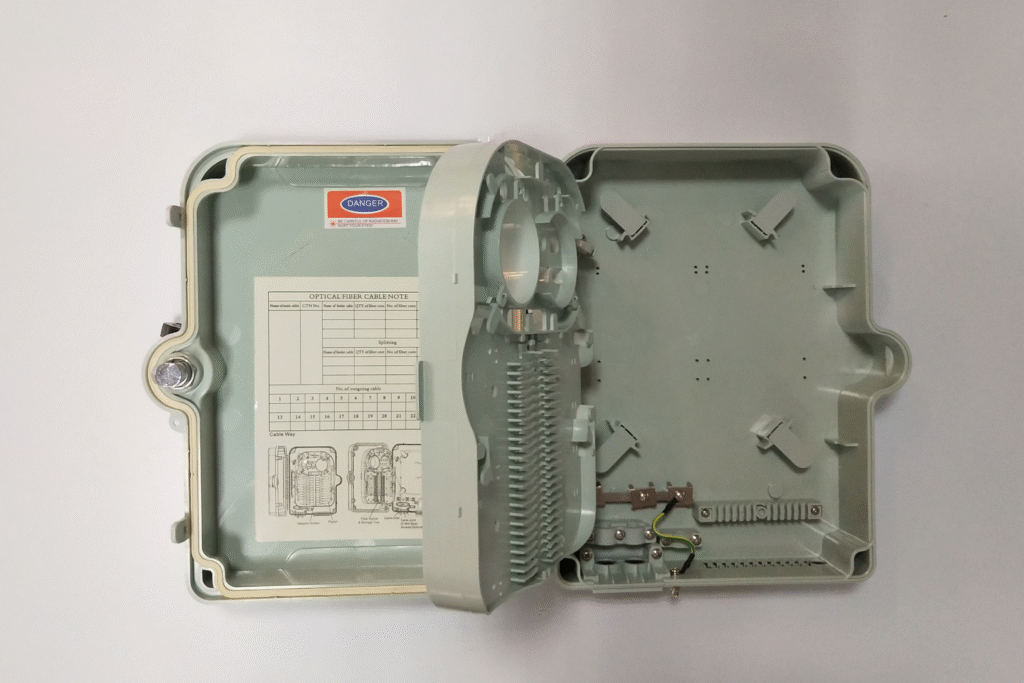

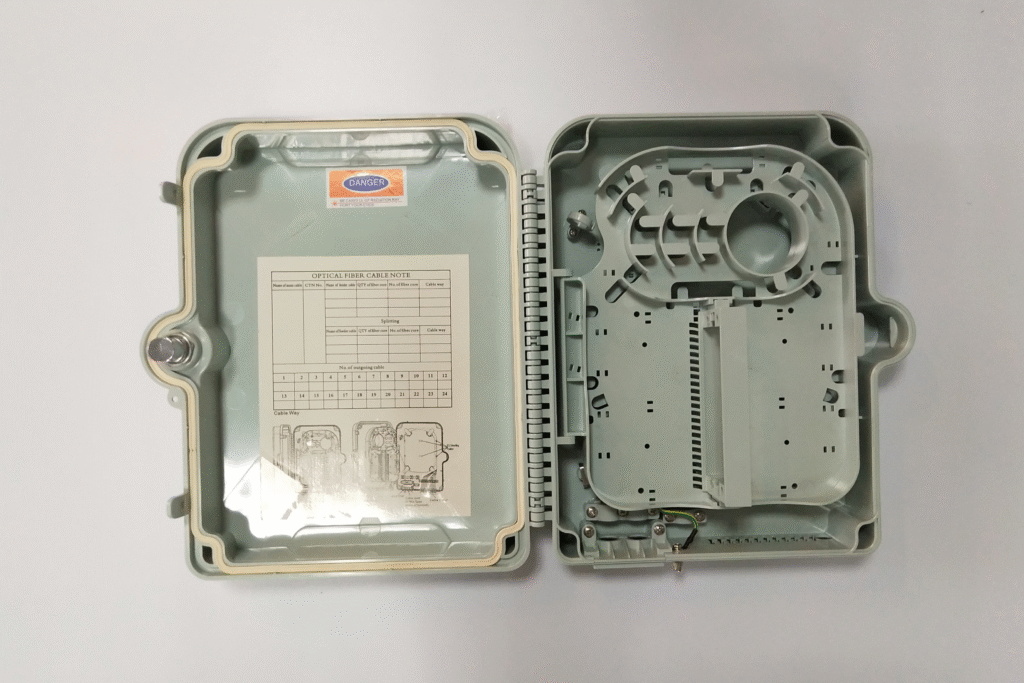

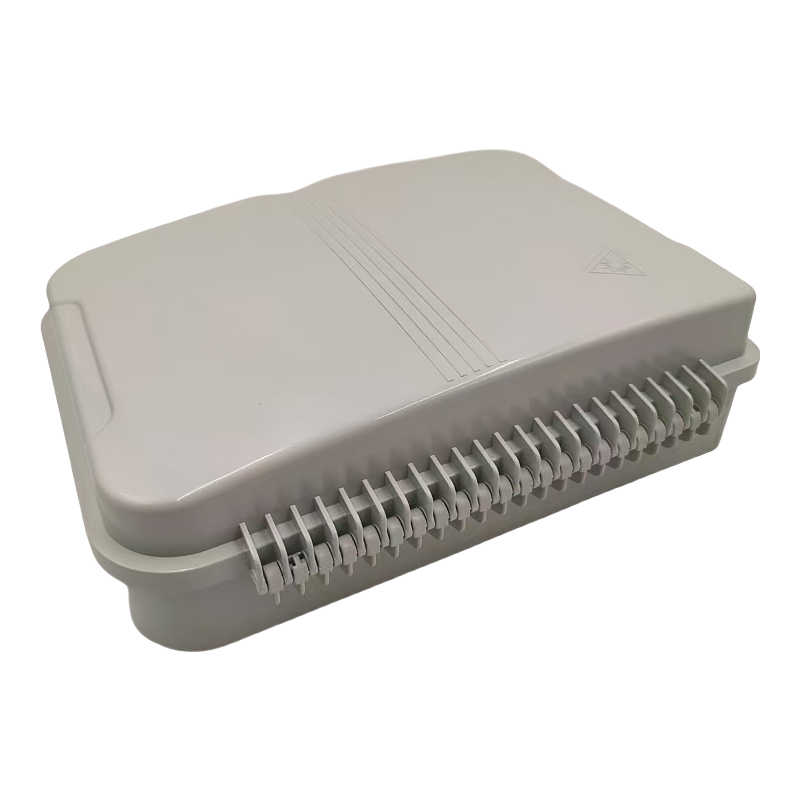

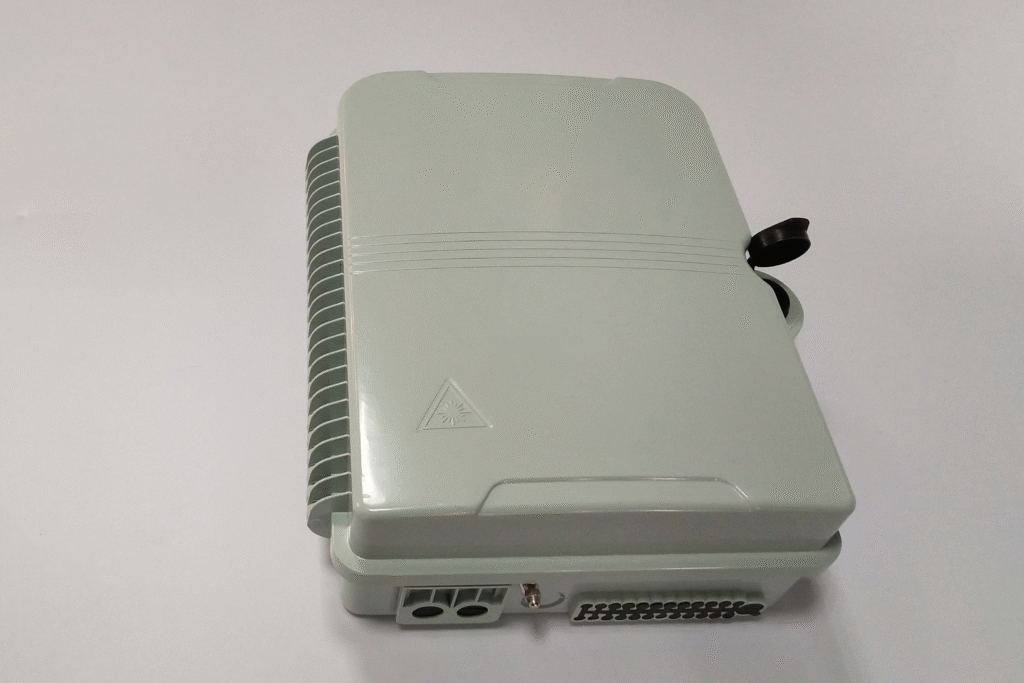

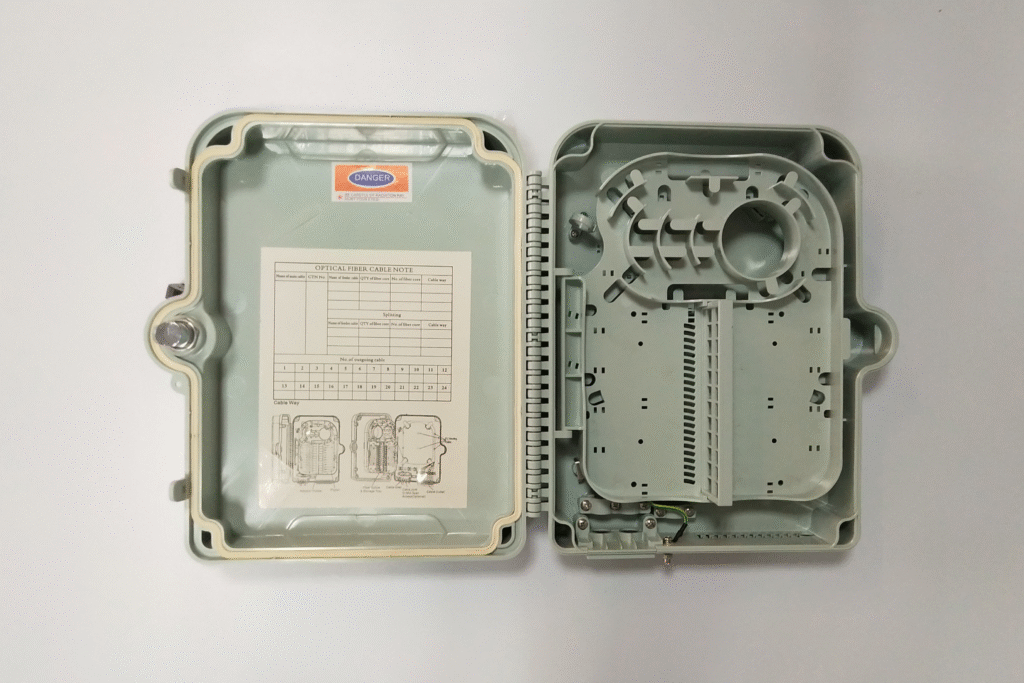

Pictures:
