Description:

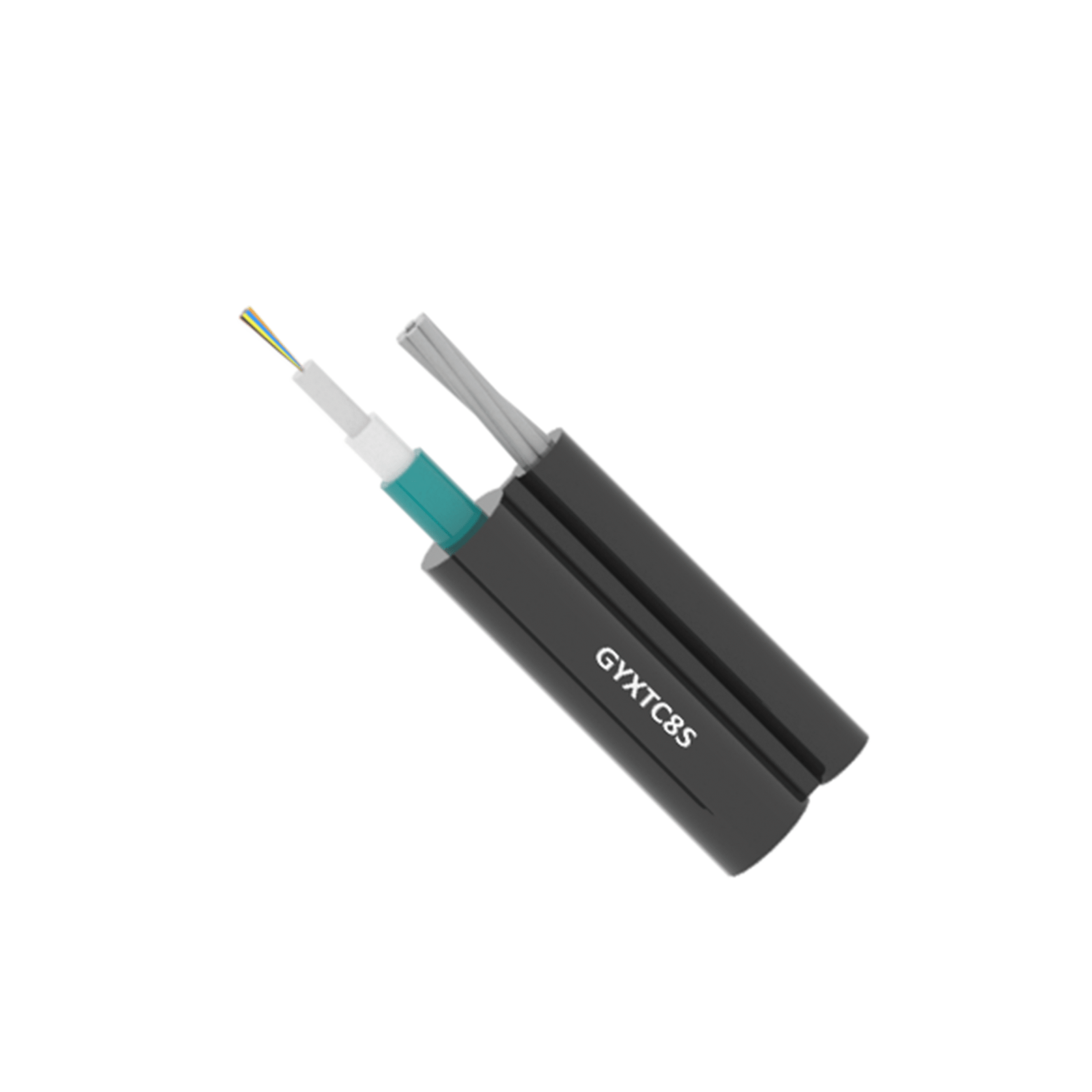

GYXTC8S is a figure-8 optical fiber cable is constructed with central loose tube with multiple 250µm optical fibers and is filled with a water-resistant compound,then a steel tap wrap it up. Finally, stranded wires are incorporated for support, and the entire assembly is encased in a polyethylene (PE) sheath, resulting in the distinctive figure-8 shape.
| MOQ： | 1 KM | Packaging: | Wooden drum |
| Delivery Time: | 7-15 working days | Brand Name: | SoctFiber |
| Supply Ability: | 5000KM/month | Model Number: | GYXTC8S |
| Place of Origin: | Jiangsu,China | Certification: | ISO9001 |
Detail Information:
| Fiber Count: | 4-24 |
| Fiber Type: | G652D,G655D,OM1,OM2 |
| Fiber Brand: | YOFC,HTGD |
| OEM: | Yes |
| Application: | Aerial installation |
| Strength member | Steel wire x7 |
Features:
- Structure Type: This is a central loose tube self-supporting cable. The optical fibers are enclosed in a central loose tube filled with waterproof gel.
- Tensile Strength: steel strand allow the cable stand with high tensile forces, making it ideal for applications requiring high strength and reliability
- Moisture Resistance: The loose tube is filled with water-blocking gel, effectively preventing moisture ingress and providing good waterproof performance.
- Rodent Resistance: The steel tape acts as a barrier against rodents, such as mice, that may attempt to chew through the cable. This is particularly important for outdoor installations or in underground conduits.
- Corrosion Resistance: The outer polyethylene (PE) sheath offers excellent corrosion resistance and UV protection, making it suitable for various harsh outdoor environments.
- Suitable Installation Methods: Small cable diameter, light cable weight,easily to install. Perfect for Short-Distance Transmission Aerial Installation
Technical Parameters:
| No. of cable | 4-12 | 24 | ||
| Fiber Model | G.652D | |||
| Loose Tube | Material | PBT | ||
| Diameter（±0.06）mm | 2.0 | 2.8 | ||
| Thickness（±0.03）mm | 0.35 | |||
| The Max.Core NO./Tube | 4-12 | 24 | ||
| Water Blocking layer（Material） | Water Blocking Tape | |||
| Armoring | Material | Steel Tape | ||
| Thickness（±0.03）mm | 0.25 | |||
| Messenger Wire | Material | Steel Wire | ||
| Size（±0.05）mm | 2.0mm | |||
| Web | Material | MDPE | ||
| Size（±0.1）mm | 2.0×3.0 | |||
| Outer Sheath① | Material | MDPE | ||
| Thickness（±0.1）mm | 1.2 | |||
| Outer Sheath② | Material | MDPE | ||
| Thickness（±0.1）mm | 1.5 | |||
| Cable Diameter（±0.5）mm | 6.6×11.5 | 7.4x12.5 | ||
| Cable Weight（±10）kg | 93 | 102 | ||
| Min. bending radius | Without Tension | 10.0×Cable-φ | ||
| Under Maximum Tension | 20.0×Cable-φ | |||
| Temperature range（℃） | Installation | -20~+60 | ||
| Transport&Storage | -40~+70 | |||
| Operation | -40~+70 | |||
G652D Fiber Data Sheet :
| FIBER PERFORMANCE（ITU-G.652） | Item | Specifications | |
| Mode field diameter（μm） | 1310nm 9.2±0.4 | ||
| 1550nm 10.5±0.4 | |||
| Coating diameter（μm） | 245±7 | ||
| Coating non-circularity （%） | ＜6.0 | ||
| Mode field /cladding concentricity error （μm） | ≤0.6 | ||
| Cladding diameter（μm） | 125.0±1 | ||
| Cladding non-circularity （%） | ＜1.0 | ||
| Attenuation（dB/Km） | 1310mm ≤0.36 | ||
| 1550nm ≤0.22 | |||
| 1625nm ≤0.24 | |||
| Cut-off wavelength （nm） | 2m（λc） 1150~1330 | ||
| 20m cable +2m fiber （λcc） ＜1260 | |||
| Dispersion | Zero dispersion wavelength（m） 1300~1322 | ||
| Zero dispersion slope（ps/nm2.Km） ≤0.092 | |||
| Chromatic dispersion (Ps/nm2.Km) | 1285~1330nm ≤3.1 | ||
| 1550nm ≤18 | |||
| 1625nm ≤22 | |||
| Fiber color | blue, orange, green, brown, slate, white, red, black, yellow, violet, pink and aqua | ||
Fiber Colors:
| NO. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| NO. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Production workshop：
Quality verification：
Packaging:
FAQ:
Q1: How to choose the right optical cable?
Choosing an optical cable requires considering factors such as transmission distance, data rate, environmental conditions, and connection methods. You can provide your specific requirements, and our professional technical team will recommend the suitable optical cable products for you.
Q2: What’s the MOQ?
The MOQ of Fiber Optic cable depends on the product model and customer needs. You can consult our sales personnel for more details.
Q3: What’s delivery time?
Our delivery time is generally 3-15 working days. The specific delivery time will be determined based on the order quantity and production schedule.
Q4: Why are optical cable prices on the market so varied?
The price differences in optical cables are the result of multiple factors. When choosing optical cables, you should consider price, quality, brand, and after-sales service comprehensively to select products that meet your needs.
Q5: Is it possible to customize optical cables with special specifications?
Absolutely! We will have detailed discussions with you to understand your needs. Then, our engineers will design the optimal solution based on your requirements. We will produce samples for your testing and confirmation. Finally, we will arrange mass production according to your confirmation.
