Description:

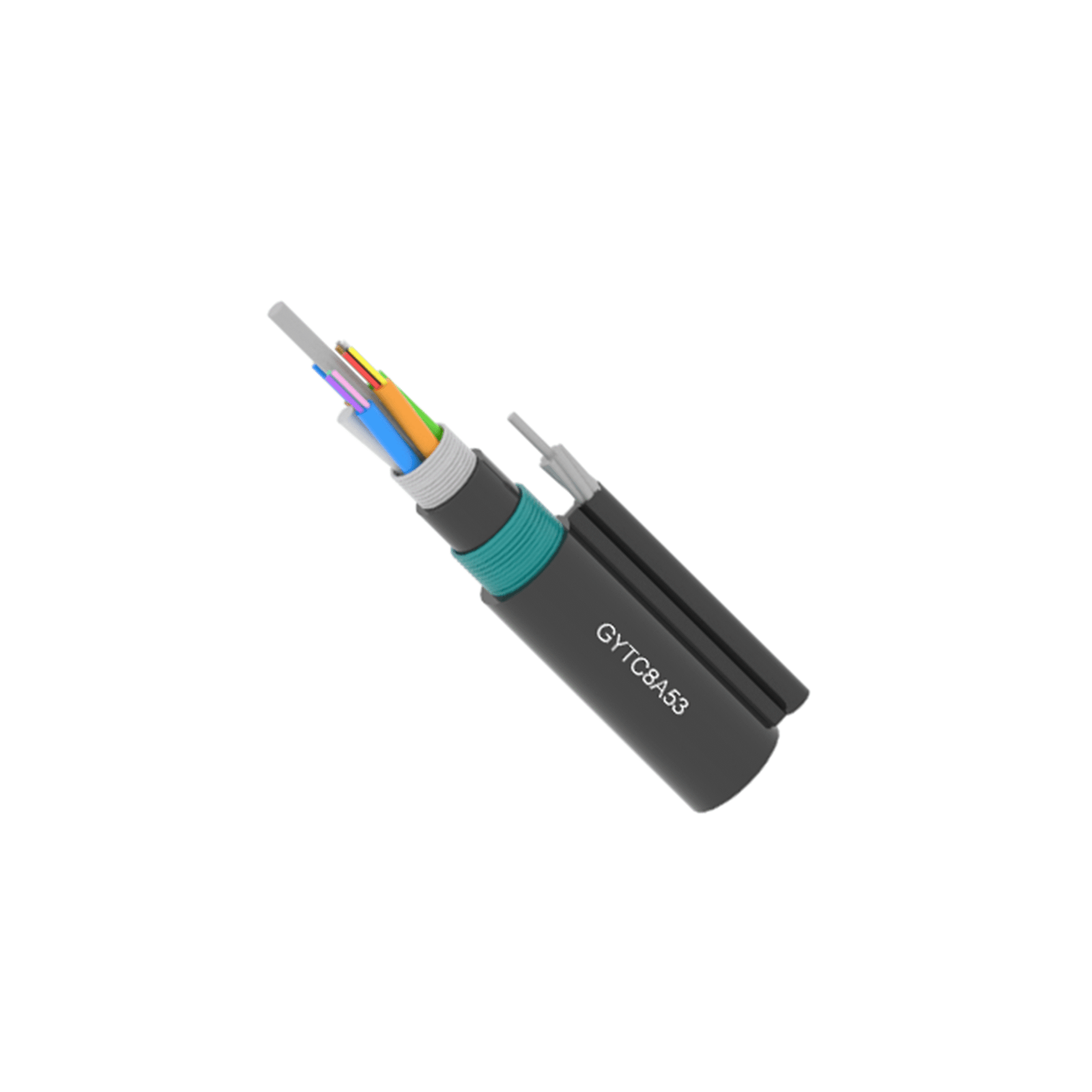

GYTC8A53 is a figure-8 optical fiber cable which is constructed with a central steel wire for strength. Surrounding this core is a bundle of loose tubes made from high-modulus plastic. Each tube houses multiple 250µm optical fibers and is filled with a water-resistant compound. These tubes are then stranded around the central strength member to form a compact, circular cable core .Double armored structure including aluminium tap and steel tap protect against mechanical impact and rodents.Double UV-resistant polyethylene (PE) Jacket design are perfect for outdoor durability.And the resulting structure is integrated into a figure-eight polyethylene sheath, incorporating steel wires for reinforcement.
| MOQ： | 1 KM | Packaging: | Wooden drum |
| Delivery Time: | 7-15 working days | Brand Name: | SoctFiber |
| Supply Ability: | 5000KM/month | Model Number: | GYTC8A53 |
| Place of Origin: | Jiangsu,China | Certification: | ISO9001 |
Detail Information:
| Fiber Count: | 4,8,12,24,48 |
| Fiber Type: | G652D,G655D,OM1,OM2 |
| Fiber Brand: | YOFC,HTGD |
| OEM: | Yes |
| Application: | Aerial Installations |
| Structure | Figure 8 |
| Messenger Wire | Steel wire*7 |
| Double Armored | Corrugated Steel Tape and Corrugated Aluminium Tape |
| Double Jacket | Double PE jacket |
Features:
- Self-Supporting Structure: GYTC8A53 cables are designed with a figure-eight shape and internal steel wires that provide excellent tensile strength, allowing the cable to be self-supporting without requiring additional support structures. This significantly simplifies installation and reduces costs.
- Rodent and water Resistance: The optical fibers are enclosed in loose tubes filled with a waterproof compound. The outer layer of steel tap and inner layer of aluminium further enhance the cable's resistance to water ingress and makes it resistant to damage from rodents, ensuring long-term stable operation of the optical fibers.
- Superior Tensile Strength: The steel wire within the cable contribute to its high tensile strength, enabling it to withstand significant pulling forces. This makes GYTC8A53 cables suitable for installation in various complex terrains and environments
- Strong Corrosion Resistance: The cable's outer and inner sheath is made of weather-resistant and corrosion-resistant polyethylene material, capable of withstanding various harsh environmental conditions and extending the cable's service life.
- Installation in harsh outdoor environments: Due to GYTC8A53 excellent corrosion, Rodent and water resistance and UV protection, it is ideal for use in harsh outdoor environments, such as coastal areas, forests, and other challenging settings.
Technical Parameters:
| No. of cable | 4 | 8 | 12 | 24 | 48 | |||||
| Fiber Model | G.652D | |||||||||
| Design(Strength Member+Tube&Filler) | 1+5 | 1+5 | 1+5 | 1+5 | 1+5 | |||||
| Central Strength Member | Material | Steel Wire | ||||||||
| Diameter（±0.05）mm | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |||||
| Loose Tube | Material | PBT | ||||||||
| Diameter（±0.06）mm | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | |||||
| Thickness（±0.03）mm | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 | |||||
| The Max.Core NO./Tube | 4 | 4 | 6 | 6 | 12 | |||||
| Filler Rope | Material | PP | ||||||||
| Diameter（±0.06）mm | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | |||||
| NO. | 4 | 3 | 3 | 1 | 1 | |||||
| Water Blocking layer（Material） | Flooding Compound | |||||||||
| Outer Armored | Material | Corrugated Aluminium tape | ||||||||
| Thickness（±0.05）mm | 0.2 | |||||||||
| Inner Armored | Material | Corrugated Steel tape | ||||||||
| Thickness（±0.05）mm | 0.22 | |||||||||
| Support pieces | Material | Galvanized steel strand | ||||||||
| Structure | Steel wire x7 | |||||||||
| Web | Material | MDPE | ||||||||
| Size（±0.2）mm | 2.0×2.0 | |||||||||
| Outer Sheath① | Material | MDPE | ||||||||
| Thickness（±0.2）mm | 1.2 | |||||||||
| Outer Sheath② | Material | MDPE | ||||||||
| Thickness（±0.1）mm | 1.8 | |||||||||
| Cable Diameter(W×H)（±0.2）mm | 12.9*21.6 | 14.1*22.8 | ||||||||
| Cable Weight（±10）kg | 230 | 260 | ||||||||
| Min. bending radius | Without Tension | 10.0×Cable-φ | ||||||||
| Under Maximum Tension | 20.0×Cable-φ | |||||||||
| Temperature range（℃） | Installation | -20~+60 | ||||||||
| Transport&Storage | -40~+70 | |||||||||
| Operation | -40~+70 | |||||||||
| Allowable Tensile Strength | Short Term | 2000N | ||||||||
| Long Term | 4000 N | |||||||||
| Allowable Crush Resistance | Short Term | 3000 (/100mm) | ||||||||
| Long Term | 1000 (/100mm) | |||||||||
G652D Fiber Data Sheet :
| FIBER PERFORMANCE（ITU-G.652） | Item | Specifications | |
| Mode field diameter（μm） | 1310nm 9.2±0.4 | ||
| 1550nm 10.5±0.4 | |||
| Coating diameter（μm） | 245±7 | ||
| Coating non-circularity （%） | ＜6.0 | ||
| Mode field /cladding concentricity error （μm） | ≤0.6 | ||
| Cladding diameter（μm） | 125.0±1 | ||
| Cladding non-circularity （%） | ＜1.0 | ||
| Attenuation（dB/Km） | 1310mm ≤0.36 | ||
| 1550nm ≤0.22 | |||
| 1625nm ≤0.24 | |||
| Cut-off wavelength （nm） | 2m（λc） 1150~1330 | ||
| 20m cable +2m fiber （λcc） ＜1260 | |||
| Dispersion | Zero dispersion wavelength（m） 1300~1322 | ||
| Zero dispersion slope（ps/nm2.Km） ≤0.092 | |||
| Chromatic dispersion (Ps/nm2.Km) | 1285~1330nm ≤3.1 | ||
| 1550nm ≤18 | |||
| 1625nm ≤22 | |||
| Fiber color | blue, orange, green, brown, slate, white, red, black, yellow, violet, pink and aqua | ||
Fiber Colors:
| NO. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| NO. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Production workshop：
Quality verification：
Packaging:
FAQ:
Q1: How to choose the right optical cable?
Choosing an optical cable requires considering factors such as transmission distance, data rate, environmental conditions, and connection methods. You can provide your specific requirements, and our professional technical team will recommend the suitable optical cable products for you.
Q2: What’s the MOQ?
The MOQ of Fiber Optic cable depends on the product model and customer needs. You can consult our sales personnel for more details.
Q3: What’s delivery time?
Our delivery time is generally 7-15 working days. The specific delivery time will be determined based on the order quantity and production schedule.
Q4: Why are optical cable prices on the market so varied?
The price differences in optical cables are the result of multiple factors. When choosing optical cables, you should consider price, quality, brand, and after-sales service comprehensively to select products that meet your needs.
Q5: Is it possible to customize optical cables with special specifications?
Absolutely! We will have detailed discussions with you to understand your needs. Then, our engineers will design the optimal solution based on your requirements. We will produce samples for your testing and confirmation. Finally, we will arrange mass production according to your confirmation.
