Description:
48 cores Span 100M Flat FRP Protection Roedores ADSS Fiber Optic Cable is designed for aerial deployment in environments susceptible to rodent damage. Its rodent-proof layer is made of flat FRP with a fiber reinforced plastic (FRP) strength member in the center. The ADSS Fiber Optic structure allows for direct installation on utility poles and supports a span of 100m. Its rodent-proof design ensures long-term durability, making it a good choice for long-distance, high-performance optical communication networks.
| MOQ： | 1 KM | Packaging: | Wooden Drum |
| Delivery Time: | 5-25working days | Length: | Custom Length |
| Brand: | SoctFiber | Application: | Aerial |
| Place of Origin: | Jiangsu,China | Certification: | ISO9001 |
Detail Information:
| Fiber Count: | 48F |
| Fiber Type: | G652D |
| Fiber Brand: | YOFC,HTGD |
| Model Number: | ADSS Fiber Optic Cable |
| Span | 100m |
| Jacket: | HDPE |
| Rodent-Proof Layer: | Flat FRP |
Features:
- Stable mechanical performance, suitable for 100m span
- Wide application areas
- Low optic fiber attenuation, supports high-bandwidth information transmission
- Easy installation
Technical parameters:
| Fiber count | 48F | |
| Fiber color | Full spectrum | |
| Fiber Model | G.652D | |
| Structure | 1+5 | |
| Loose Tube | Material | PBT |
| Diameter | 1.9 mm | |
| Count | 4 | |
| Fiber color | Full spectrum | |
| Strength Member | Material | FRP |
| Diameter | 1.4mm | |
| Rodent-Proof Layer | Material | FLAT FRP |
| Size | 4.2x1.0mm 4.0x1.0mm | |
| Inner sheath | Material | MDPE |
| Thickness | 0.9mm | |
| Outer sheath | Material | HDPE |
| Thickness | 1.7mm | |
| Cable Diameter (±0.3) mm | 14.4mm | |
| Cable Weight (±5)kg/km | 165kg/km | |
| Cable area mm² | 140mm² | |
| Stress area mm² | 13.4mm² | |
| Attenuation coefficient | ≤0.35dB/km @ 1310nm ≤0.22dB/km @ 1550nm | |
| MAT | 4500N | |
| Short crush (100mm) | 2200N/100mm | |
| Min. bending radius | Without Tension | 15D |
| Under Maximum Tension | 25D | |
| Temperature range（℃） | Installation | -10~+40 |
| Transport&Storage | -10~+70 | |
| Operation | -40~+70 | |
G652D Fiber Data Sheet :
| FIBER PERFORMANCE （ITU-G.652） | Item | Specifications | |
| Mode field diameter（μm） | 1310nm 9.2±0.4 | ||
| 1550nm 10.5±0.4 | |||
| Coating diameter（μm） | 245±7 | ||
| Coating non-circularity （%） | ＜6.0 | ||
| Mode field /cladding concentricity error （μm） | ≤0.6 | ||
| Cladding diameter（μm） | 125.0±1 | ||
| Cladding non-circularity （%） | ＜1.0 | ||
| Attenuation（dB/Km） | 1310mm ≤0.36 | ||
| 1550nm ≤0.22 | |||
| 1625nm ≤0.24 | |||
| Cut-off wavelength （nm） | 2m（λc） 1150~1330 | ||
| 20m cable +2m fiber （λcc） ＜1260 | |||
| Dispersion | Zero dispersion wavelength（m） 1300~1322 | ||
| Zero dispersion slope（ps/nm2.Km） ≤0.092 | |||
| Chromatic dispersion (Ps/nm2.Km) | 1285~1330nm ≤3.1 | ||
| 1550nm ≤18 | |||
| 1625nm ≤22 | |||
| Fiber color | blue, orange, green, brown, slate, white, red, black, yellow, violet, pink and aqua | ||
Fiber Colors:
| NO. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| NO. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |

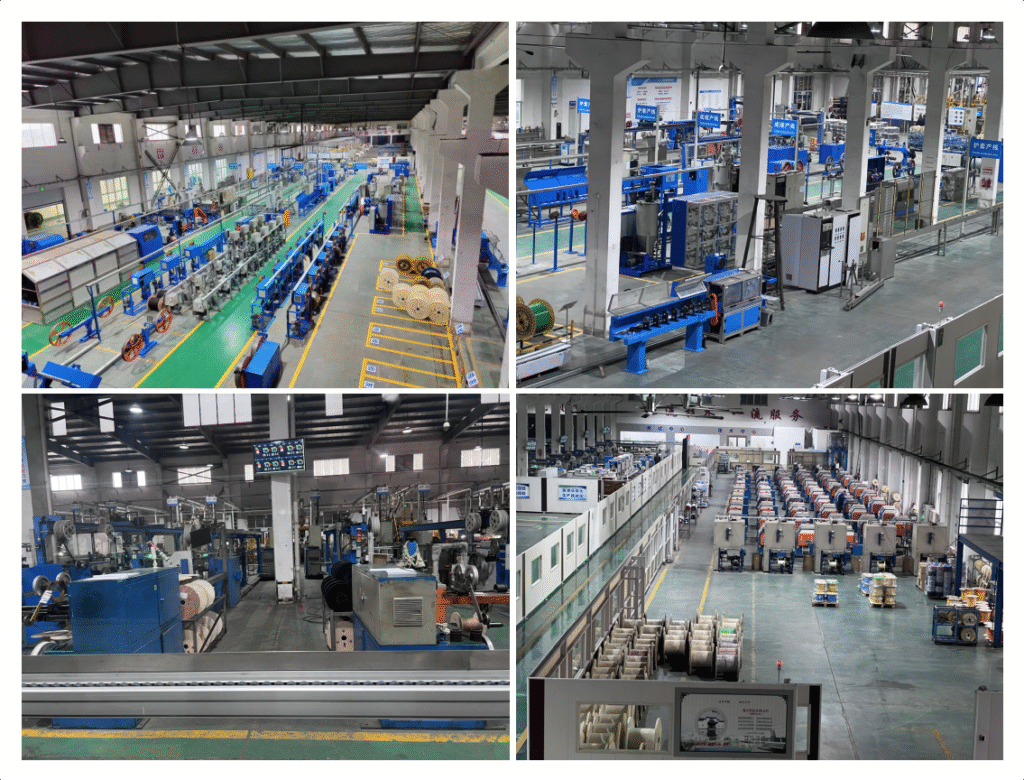

Production workshop：

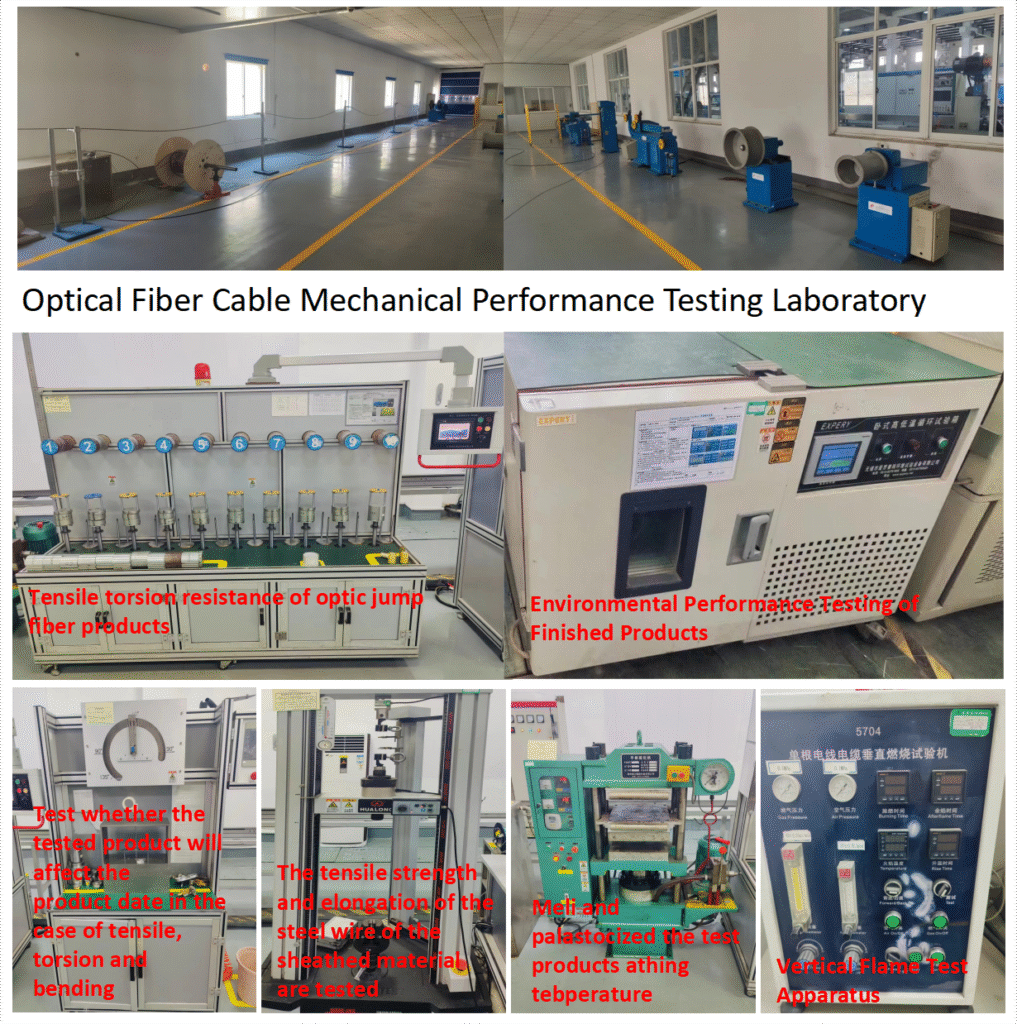

Quality verification：

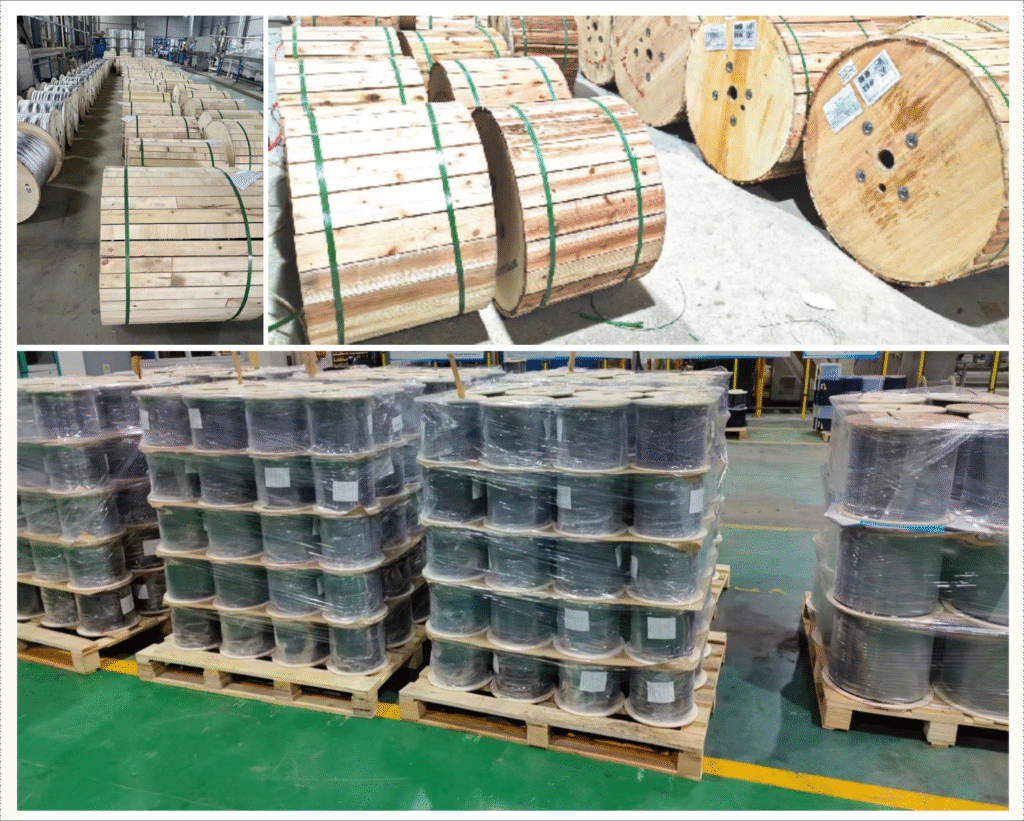

Packaging:
FAQ:
Q1: How to choose the right optical cable?
Choosing an optical cable requires considering factors such as transmission distance, data rate, environmental conditions, and connection methods. You can provide your specific requirements, and our professional technical team will recommend the suitable optical cable products for you.
Q2: What’s the MOQ?
The MOQ of Fiber Optic cable depends on the product model and customer needs. You can consult our sales personnel for more details.
Q3: What’s delivery time?
Our delivery time is generally 3-15 working days. The specific delivery time will be determined based on the order quantity and production schedule.
Q4: Why are optical cable prices on the market so varied?
The price differences in optical cables are the result of multiple factors. When choosing optical cables, you should consider price, quality, brand, and after-sales service comprehensively to select products that meet your needs.
Q5: Is it possible to customize optical cables with special specifications?
Absolutely! We will have detailed discussions with you to understand your needs. Then, our engineers will design the optimal solution based on your requirements. We will produce samples for your testing and confirmation. Finally, we will arrange mass production according to your confirmation.
