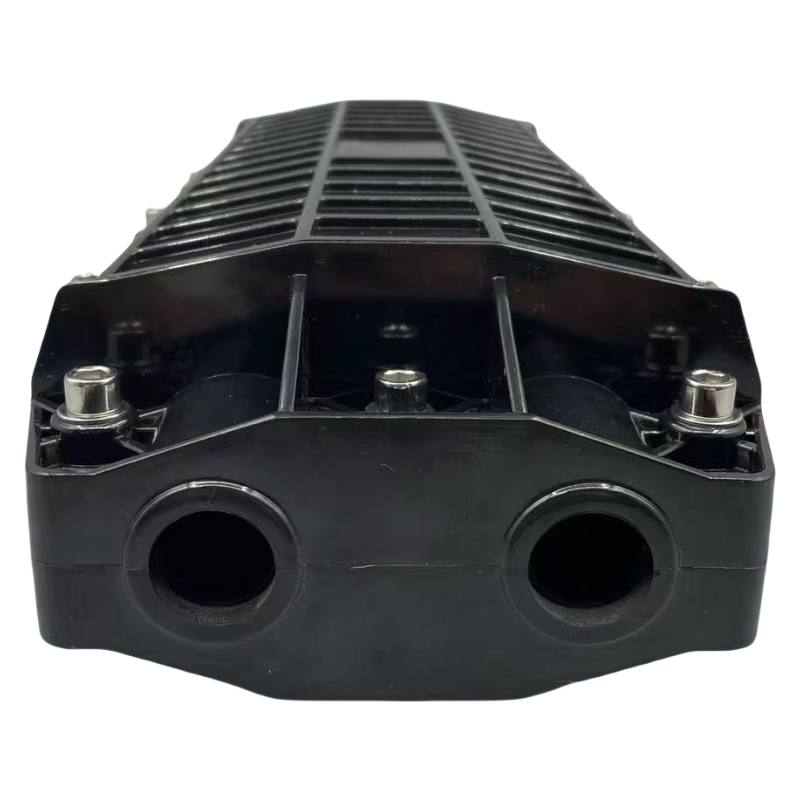

96 Core Horizontal Fiber Optic Splice Closure Horz-96A

Description:

96 Core Horizontal Fiber Optic Splice Closure can meet the needs of various user optical cables, realize the introduction, stripping and protection of distribution optical cables, and connect and terminate with the home optical cables. It can also be easily installed in crowded inspection holes or hand holes, and is also suitable for outdoor cable installation. In addition, its shell grade IP68 can provide comprehensive protection.

Technical parameters:

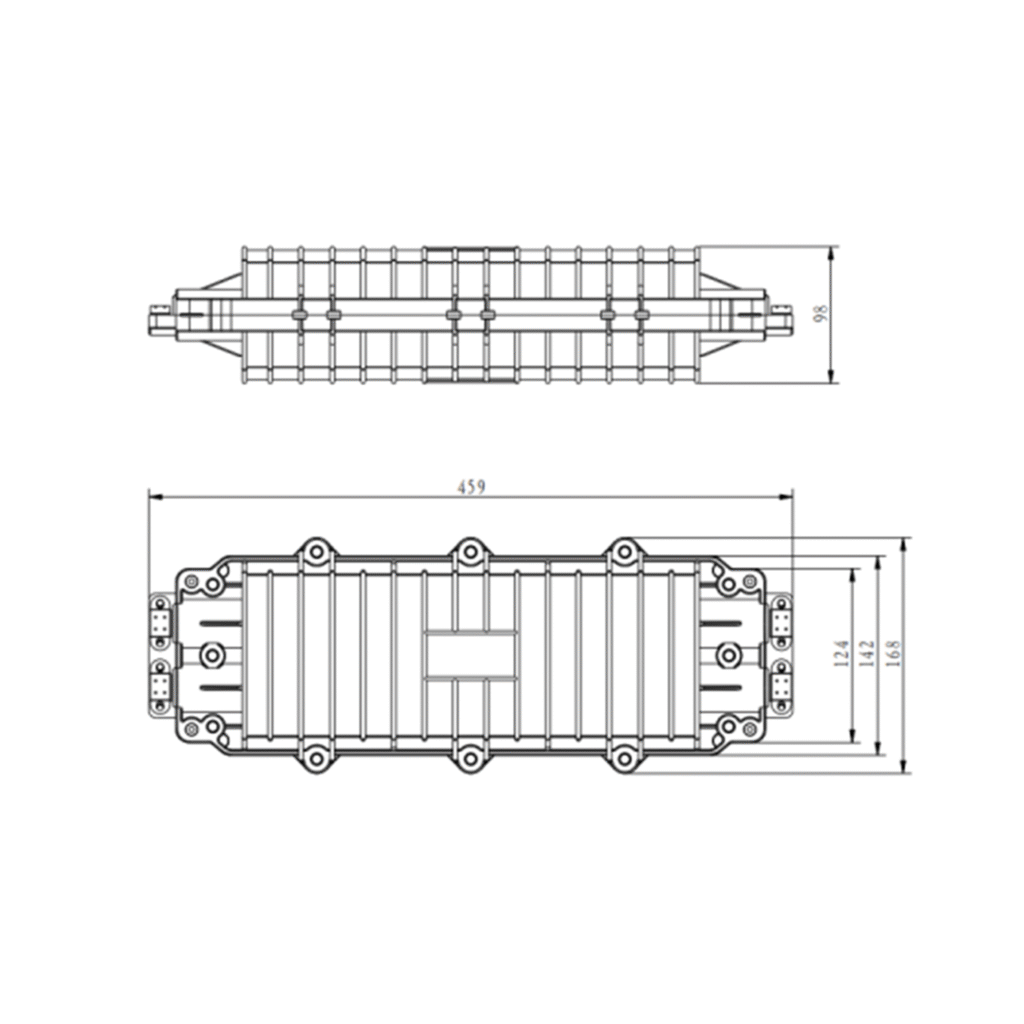

The dimension diagram:(mm)

Features:

• The box body is made of high-quality engineering plastics, with beautiful appearance and good workmanship;
• It can realize the splicing, branching and direct fusion of optical cables;
• The box body is installed and locked with screws, which is convenient and fast in construction;
• The fusion tray adopts a flip-page structure, which is convenient and fast in construction;
• The box body is sealed with rubber;
• The curvature radius is controlled throughout the process to ensure that the curvature radius of the optical fiber is greater than 30mm at any position;
• Pipeline and hanging wire installation;
• Protection level: IP68.
