The SFTB-11A is an indoor/outdoor fiber optic distribution box designed for FTTH (Fiber to the Home) applications. It serves as a termination point for feeder cables to connect with drop cables, facilitating fiber splicing, splitting, and distribution. This box is suitable for wall or pole mounting and is equipped with waterproof fast connectors, ensuring reliable performance in various environmental conditions.
Technical parameters:
| Model No. | SFTB-11A | Color | Black, Grey,White.. |
| Capacity | 11 cores | Material | PP+GF |
| Dimension(L*W*D,MM) | 216*184.5*83.5 | Inlet/Outlet | 1+10 |
| Protection Level | IP68 | Splitter | 1:4 &1:8 & 1:9 |
| Sealing Method For Inlets | mechanical sea | Adapters | 11 SC |
The dimension diagram:(mm)
Features:
1.The box is made of high-quality engineering plastic, with a beautiful appearance and good craftsmanship quality;
2.Can install 11 Mini SC adapters ;
3.Can install 1 1/8 miniature optical splitter,or 1/9 miniature optical splitters ;
4.Full curvature radius control ensures that the curvature radius of the fiber optic is greater than 30mm at any position;
5.Wall mounted installation and pole mounted installation;
6.The box body seal adopts a welded structure，Can install 2 winding frames;

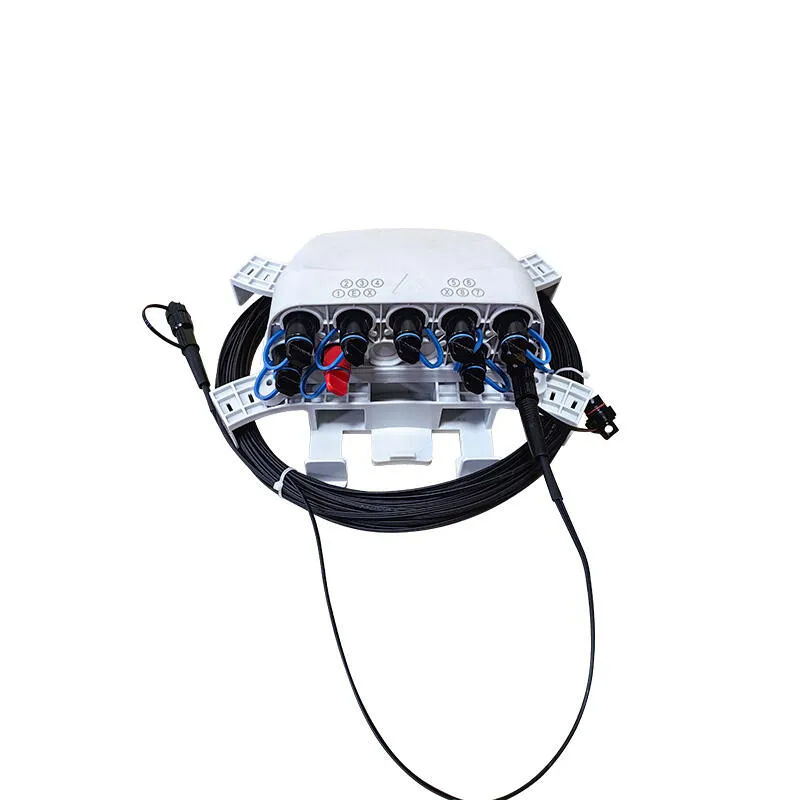

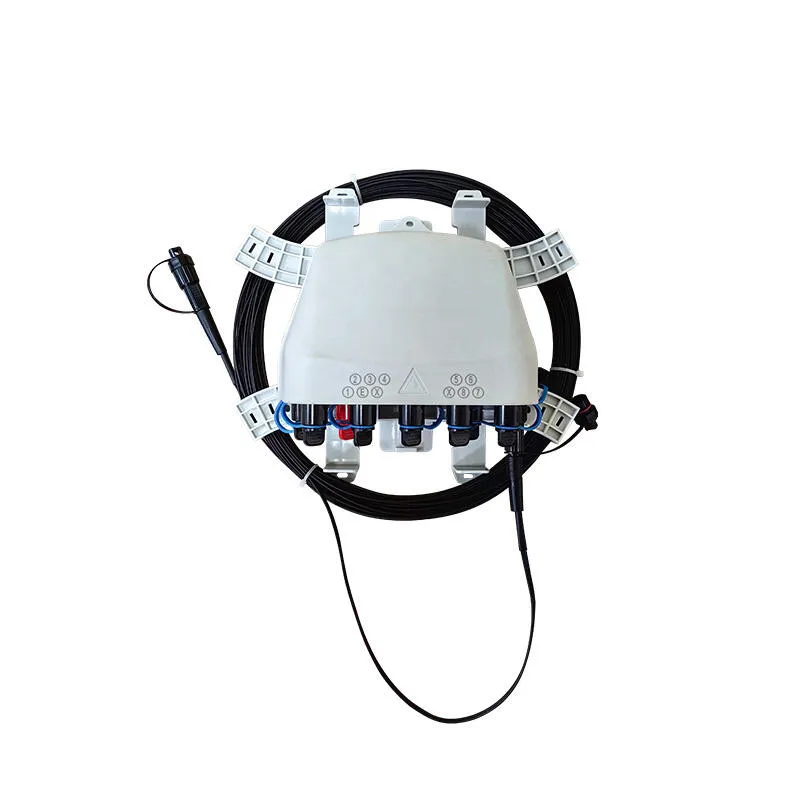

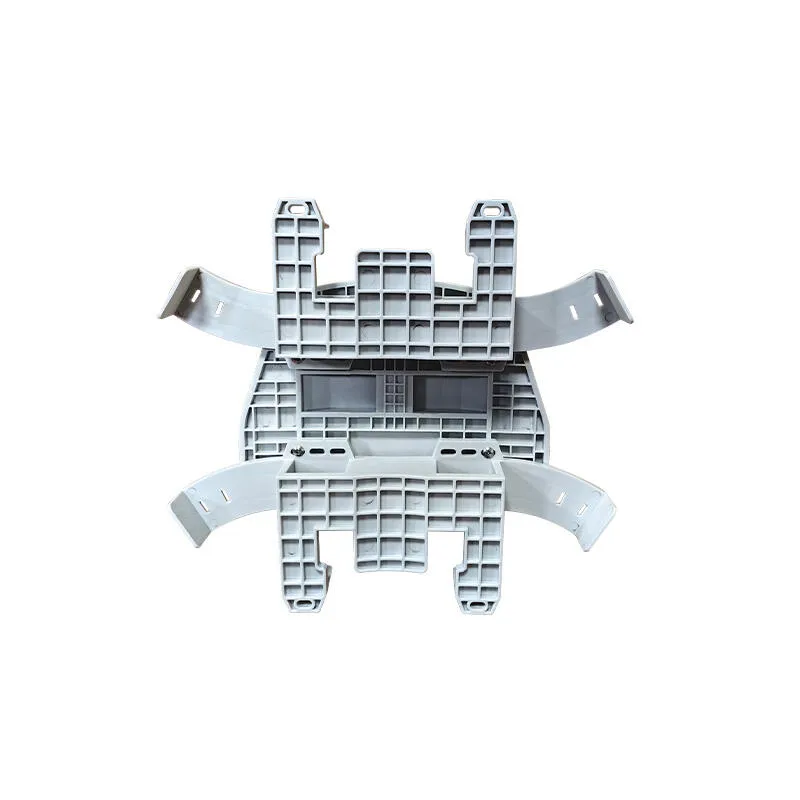

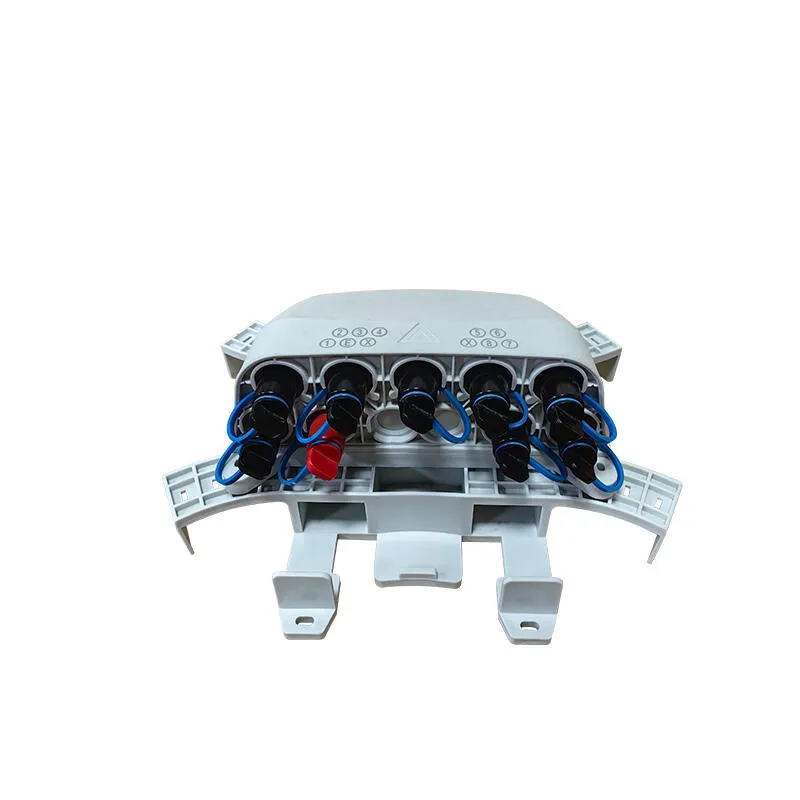

Pictures:
Package:
| Model No. | Product size | Inner Carton size | Outer carton size | Weight of each outer box |
| SFTB-11A | 213*184.5*83.5mm | 305*195*135mm(1pcs) | 410*320*440mm(6pcs) | 6.5kg |
