2. Introduction to Fiber Optic Patch Cords

Fiber optic patch cords are essential components in modern communication networks, facilitating the connection between various devices and ensuring efficient data transmission. These cables, capped with connectors at both ends, enable quick and reliable connections within telecommunication equipment, data centers, and other high-speed network environments.

SoctFiber offers high-quality fiber optic patch cords with customizable packaging, reliable lead times, and logistics services optimized for smooth customs clearance.

3. Types of Fiber Optic Patch Cords

3.1 Single-Mode vs. Multi-Mode

Fiber optic patch cords are primarily categorized based on the type of optical fiber used:​

Single Mode Vs. Multi Mode

3.2 Connector Types

The performance and compatibility of fiber optic patch cords heavily depend on the connectors used. Common connector types include:​

Pictures	Connector Type	Description

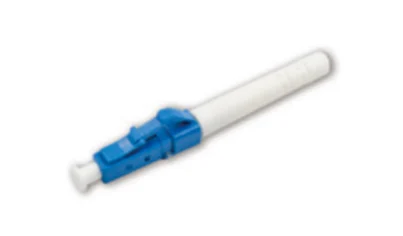

	LC	Small form factor; widely used in high-density applications like data centers.

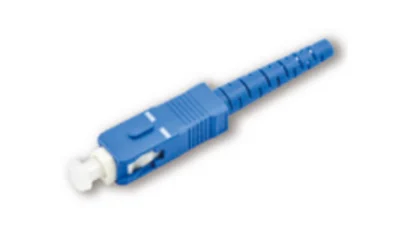

	SC	Standard square-shaped connector with a push-pull mechanism; highly durable and easy to use.

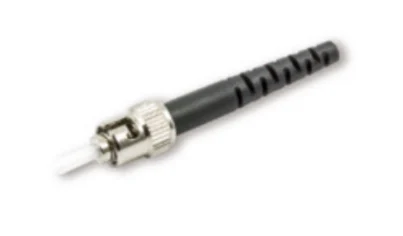

	ST	Bayonet-style connector commonly used in legacy networks and industrial environments.

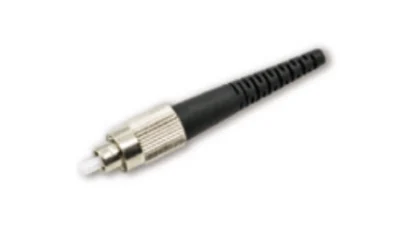

	FC	Screw-on connector; provides a stable connection ideal for high-vibration environments.

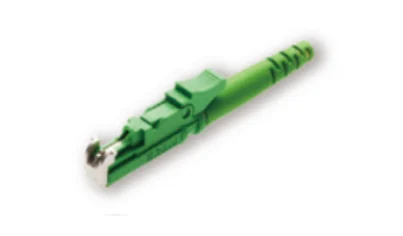

	E2000	Features a spring-loaded protective cap for excellent performance and dust protection.

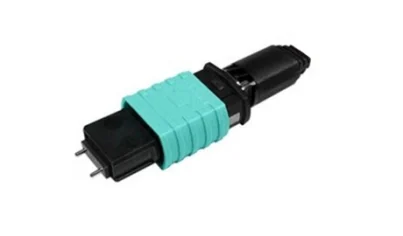

	MTP/MPO	High-density connector used for parallel optical interconnects, supporting 12/24/48 fiber ribbons.

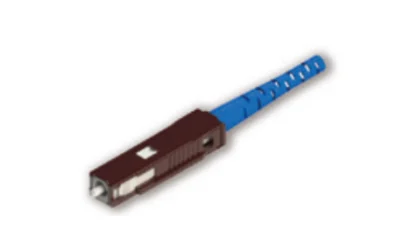

	MU	Smaller than SC connectors, used in high-density environments.

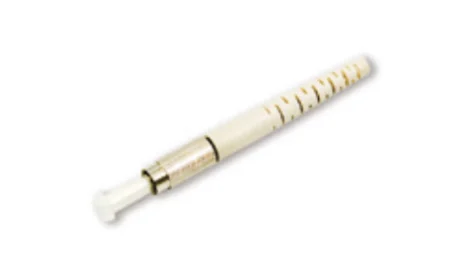

	DIN	Threaded metal connector, typically used in industrial or specialty applications.

3.3 Cable Configurations

Fiber optic patch cords come in various configurations to meet specific networking requirements:​

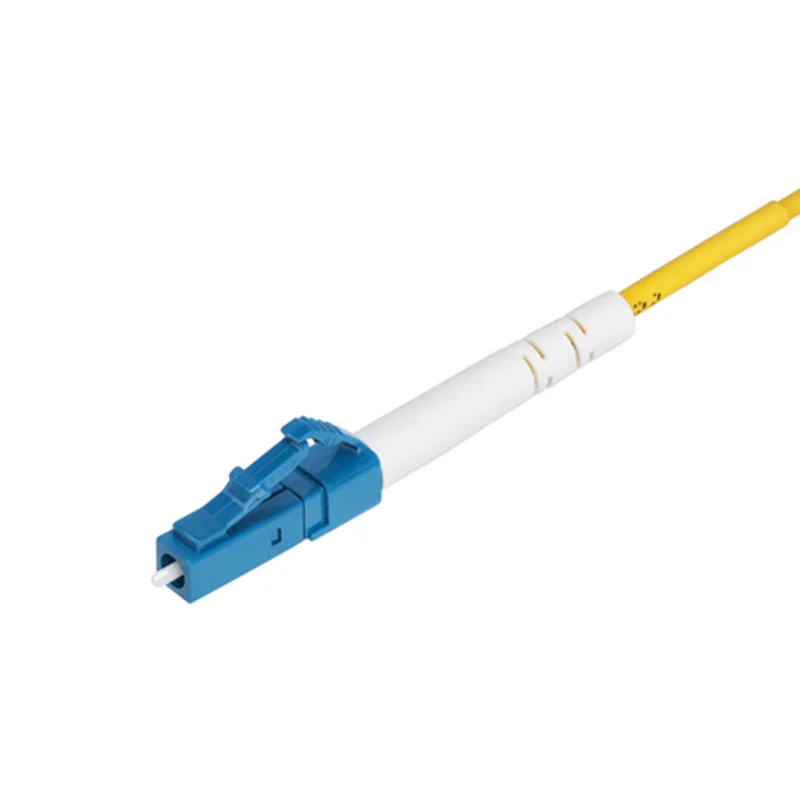

• Simplex: Consists of a single fiber, suitable for one-way data transmission.​

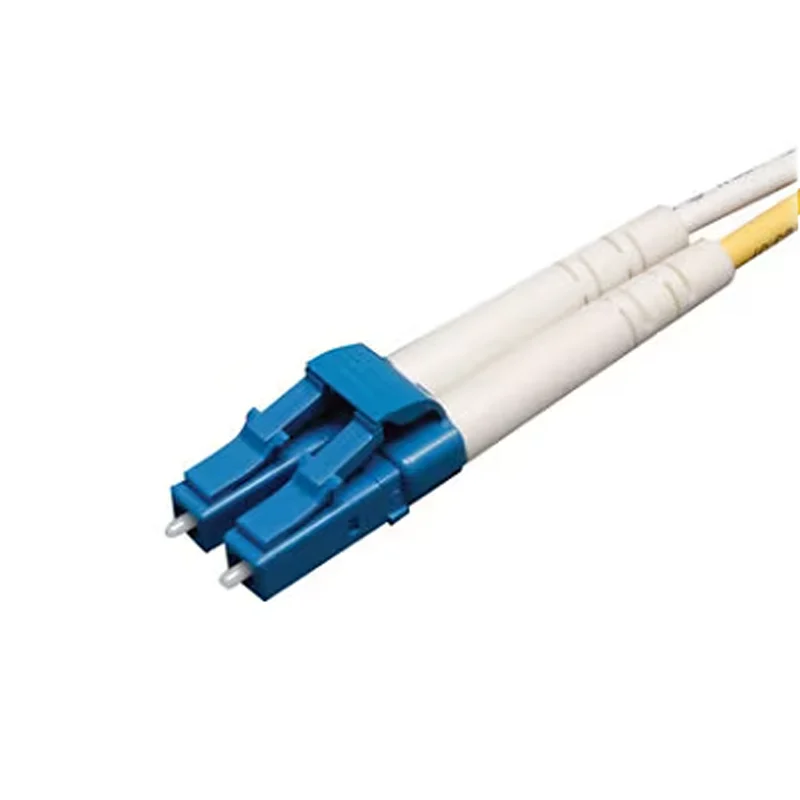

• Duplex: Comprises two fibers, enabling simultaneous bi-directional communication.​

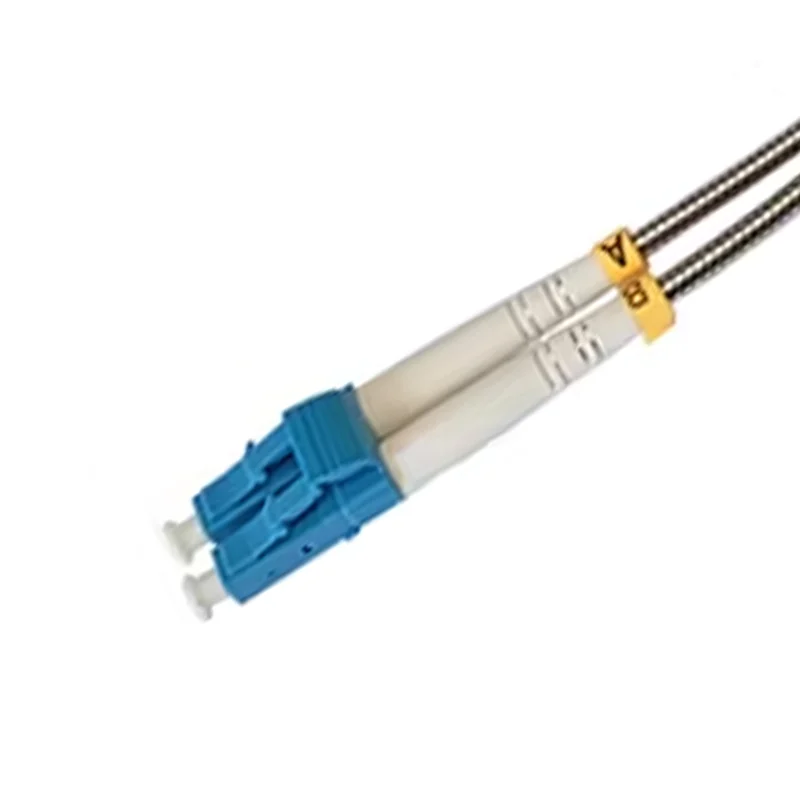

• Armored: Features a protective layer to withstand physical stress and prevent damage, ideal for harsh environments.​
• Bend-Insensitive: Designed to maintain performance even when bent or twisted, reducing signal loss in tight installations.

3.4 Common Fiber Cable Types for Patch Cord Assemblies

In the selection of fiber optic patch cord solutions, it’s essential to understand the various types of fiber optic cables commonly used for different environments and applications. Each type is designed to meet specific installation needs and operational requirements:

Pictures	Cable Type	Description

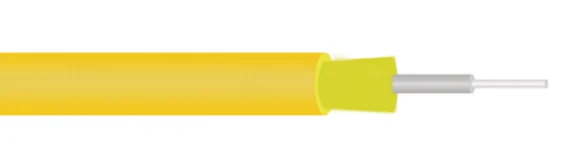

	Indoor Single-Core Cable	Ideal for point-to-point connections inside buildings; simple and compact.

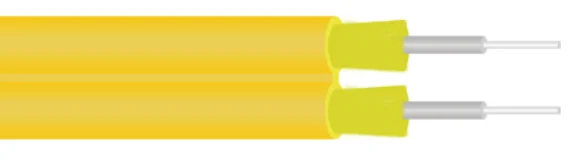

	Indoor Duplex Cable	Contains two fibers for bi-directional data transmission; often used in LANs.

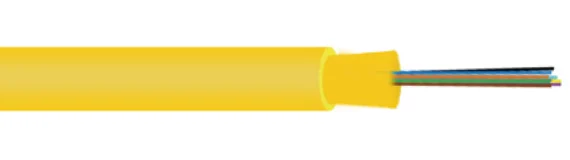

	Indoor Multi-Core Bundle Cable	Houses multiple fibers tightly bundled; suitable for high-density environments.

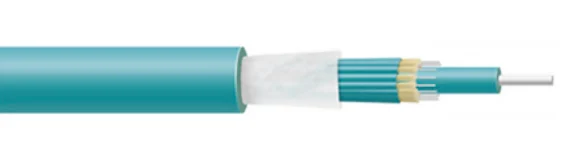

	Indoor Multi-Core Branch Cable	Features individual jacketed fibers; ideal for complex internal wiring setups.

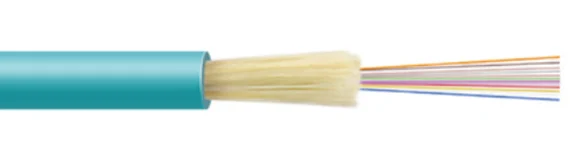

	Indoor Multi-Core Mini Cable	Smaller in diameter, supports high-density cabling in limited spaces.

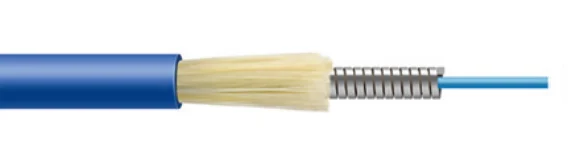

	Spiral Armored Cable	Offers robust mechanical protection; resists crushing and rodent damage.
	FTTH Drop Cable	Used for fiber-to-the-home applications; easy to install and terminate.

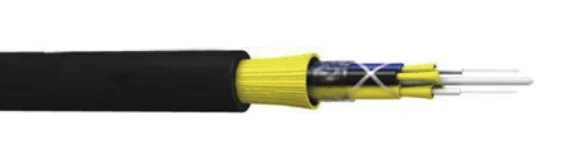

	Remote Base Station Cable	Designed for telecom base stations; supports long-distance and rugged setups.
	Military Tactical Cable	Ruggedized and mobile; resistant to environmental extremes and physical abuse.
	Outdoor Waterproof Pigtail Cable	Withstands moisture and UV exposure; used in harsh or outdoor environments.

3.5 Fiber Optic Type

Choosing the correct fiber optic type is also essential to performance. Based on transmission mode and distance, the following fiber types are widely used:

4. Technical Specifications

Understanding the technical parameters of fiber optic patch cords is crucial for optimal network performance.

4.1 Insertion Loss and Return Loss

• Insertion Loss: Represents the signal power loss due to the insertion of a connector or cable. High-quality patch cords typically exhibit insertion loss values ≤0.3dB, ensuring minimal signal degradation.​
• Return Loss: Measures the amount of light reflected back toward the source. Superior patch cords achieve return loss values of ≥50dB, indicating efficient signal transmission with minimal reflections.​

4.2 Durability and Flexibility

High-quality patch cords are constructed with robust materials, such as aramid yarns, to enhance strength and flexibility. This design ensures the cables can withstand repeated bending and physical stress without compromising performance.​

4.3 Operating Temperature Range

Fiber optic patch cords are engineered to function effectively across a broad temperature spectrum, typically from -10°C to +60°C. This versatility makes them suitable for various indoor and outdoor applications.​

5. Applications of Fiber Optic Patch Cords

• Telecommunications：In the telecommunications sector, fiber optic patch cords are pivotal in connecting network switches, routers, and other equipment, facilitating high-speed data transfer over extensive distances.​
• Data Centers：Data centers rely on fiber optic patch cords to interconnect servers, storage systems, and networking hardware, ensuring rapid and reliable data exchange critical for cloud computing and large-scale data processing.​
• Broadcasting:The broadcasting industry utilizes fiber optic patch cords to transmit high-definition audio and video signals, delivering superior quality and reducing latency in live broadcasts and studio productions.​

6. Frequently Asked Questions (FAQ)

Q1: How do I choose between single-mode and multi-mode fiber optic patch cords?

A1: The choice depends on the required transmission distance and bandwidth. Single-mode fibers are ideal for long-distance communication, while multi-mode fibers are suitable for shorter distances with high data rates.

Q2: Can I use different connector types on the same patch cord?

A2: Yes, hybrid patch cords with different connectors on each end are available to connect devices with varying interfaces.​

Q3: What is the significance of insertion loss in patch cords?

A3: Lower insertion loss indicates better performance, as it means less signal power is lost during transmission.​

Q4: Are armored patch cords necessary for indoor installations?

A4: Armored patch cords are recommended in environments where cables may be exposed to physical damage or require additional protection.​

Q5: How should I maintain my fiber optic patch cords?

A5: Keep connectors clean, avoid sharp bends, use dust caps, manage cables neatly, and inspect regularly for damage or contamination.
