Description:

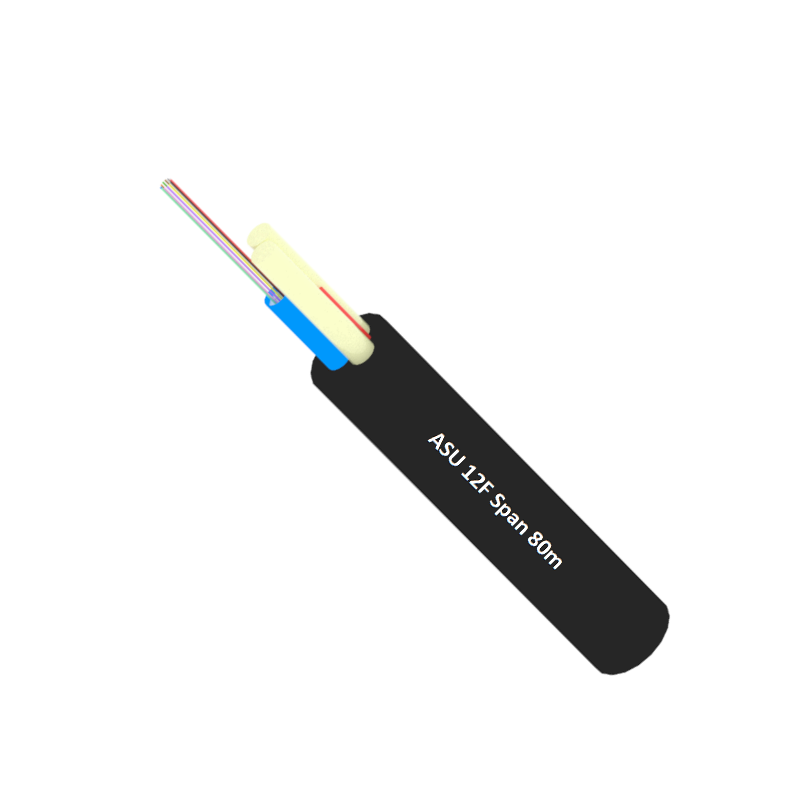

The structural features of this ASU cable are 250µm optical fiber encased in a loose tube made of PBT, which contains a filling compound, and the cable contains two fiber reinforced plastic (FRP) center strength members to increase the strength of the cable. Finally, the polyethylene (PE) outer sheath wraps the cable to increase its durability.
| MOQ： | 1KM | Packaging: | Wooden drum |
| Delivery Time: | 3-5 working days | Brand Name: | SoctFiber |
| Supply Ability: | 50000KM/month | Model Number: | ASU |
| Place of Origin: | Jiangsu,China | Certification: | ISO9001/CE |
Detail Information:
| Fiber Count: | 2-12F |
| Fiber Type: | G652D, |
| Fiber Brand: | YOFC,HTGD |
| OEM: | Yes |
| Application: | Aerial |
| Span | 80m 100m 120m |
Features:
- Stable mechanical properties
- Light weight and low transportation cost
- Wide application areas
- Support long-distance and high-bandwidth information transmission
- Easy to lay and maintain
Technical parameters:
| No. Of cable | 2-12F | ||
| Fiber Model | G.652D | ||
| Strength Member | Material | FRP | |
| Diameter(±0.05)mm | 1.8 | ||
| Loose Tube | Material | PBT | |
| The Max.Core NO.Tube | 12 | ||
| Diameter（±0.6）mm | 1.8 | ||
| Thickness（±0.03）mm | 0.35 | ||
| Outer Sheath | Material | PE | |
| Cable Diameter (±0.2) mm | 6.7 | ||
| Cable Weight (±5)kg/km | 38 | ||
| Min. bending radius | Without Tension | 10.0×Cable-φ | |
| Under Maximum Tension | 20.0×Cable-φ | ||
| Temperature range（℃） | Installation | -10~+60 | |
| Transport&Storage | -20~+70 | ||
| Operation | -20~+70 | ||
Fiber Colors:
| NO. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| NO. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |

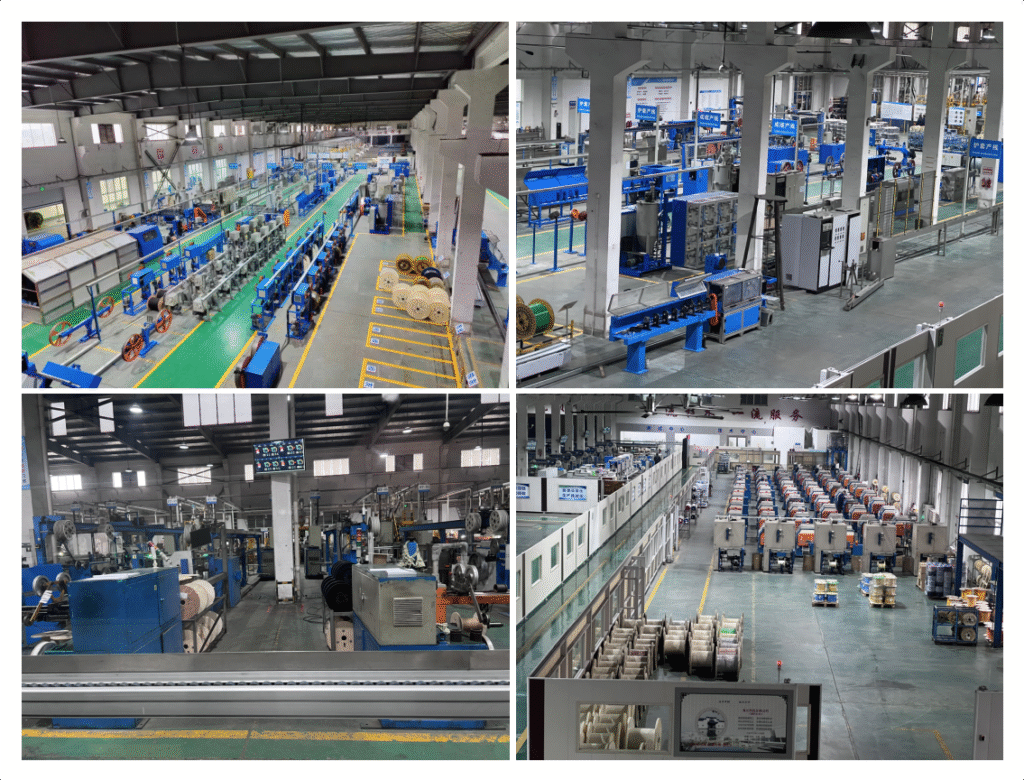

Production workshop：

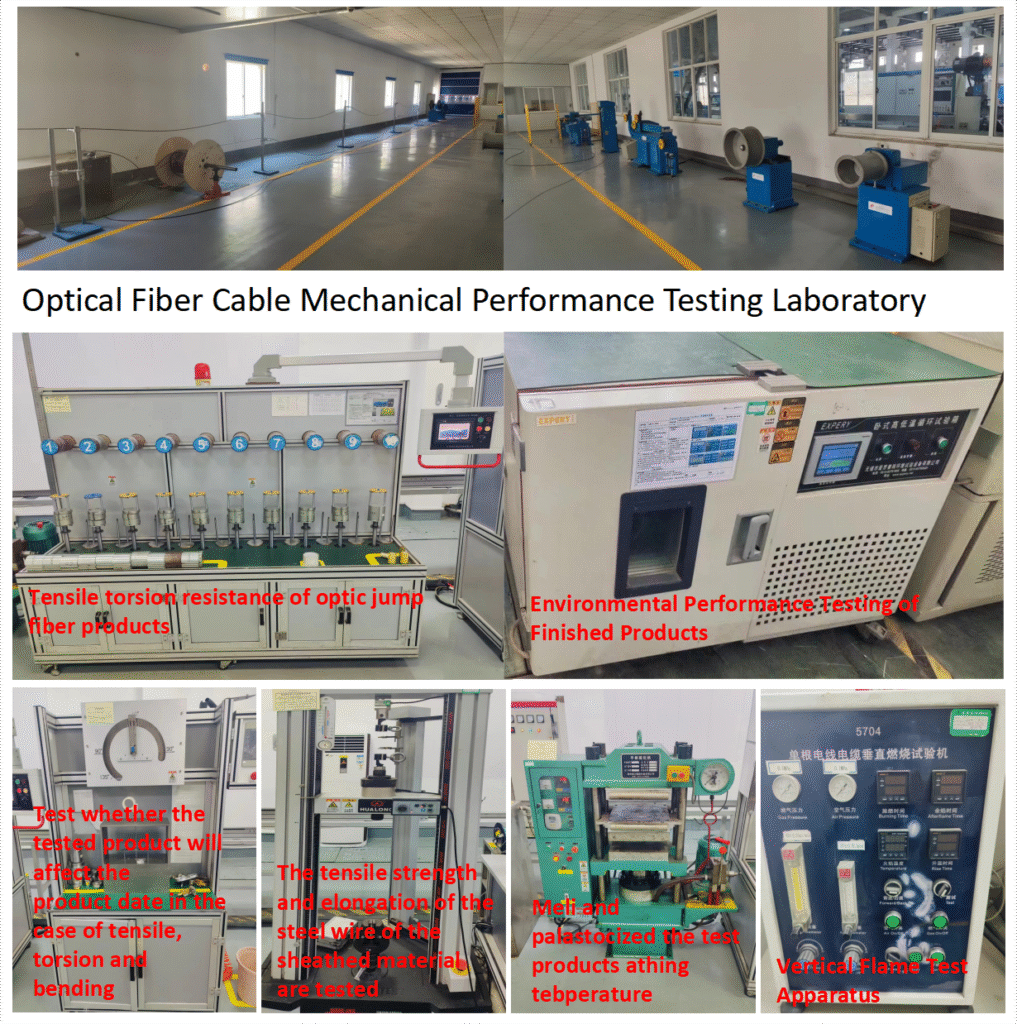

Quality verification：

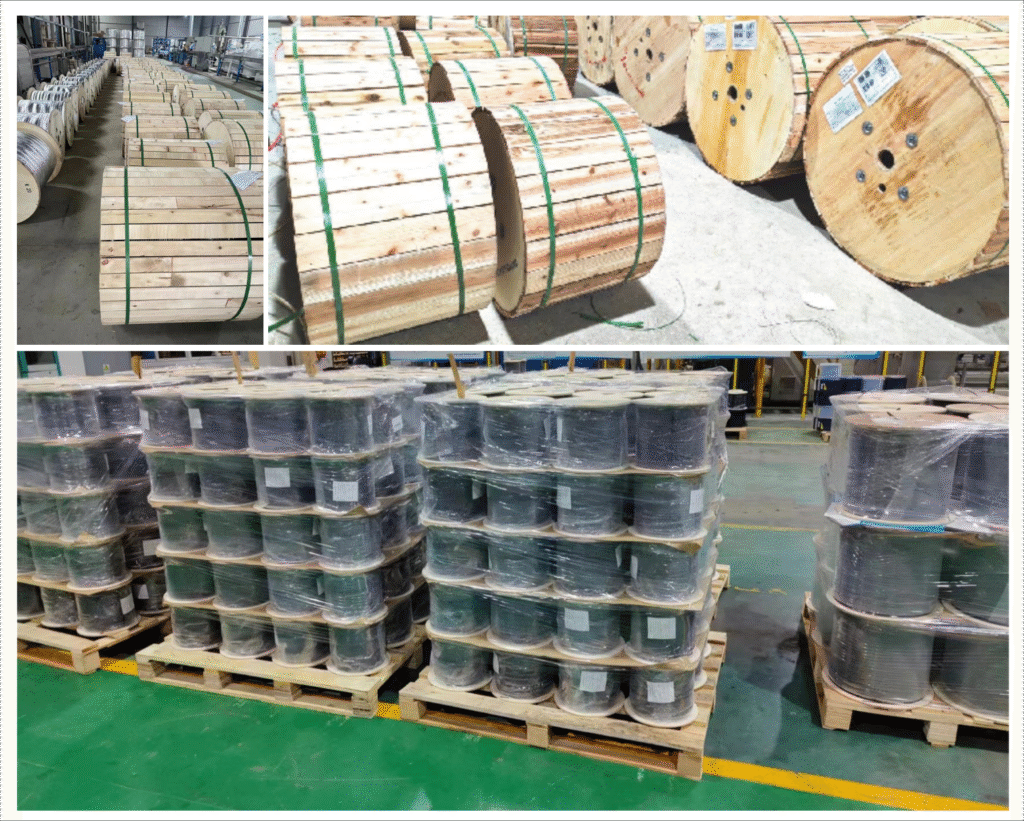

Packaging:
FAQ:
Q1: How to choose the right optical cable?
Choosing an optical cable requires considering factors such as transmission distance, data rate, environmental conditions, and connection methods. You can provide your specific requirements, and our professional technical team will recommend the suitable optical cable products for you.
Q2: What’s the MOQ?
The MOQ of Fiber Optic cable depends on the product model and customer needs. You can consult our sales personnel for more details.
Q3: What’s delivery time?
Our delivery time is generally 3-15 working days. The specific delivery time will be determined based on the order quantity and production schedule.
Q4: Why are optical cable prices on the market so varied?
The price differences in optical cables are the result of multiple factors. When choosing optical cables, you should consider price, quality, brand, and after-sales service comprehensively to select products that meet your needs.
Q5: Is it possible to customize optical cables with special specifications?
Absolutely! We will have detailed discussions with you to understand your needs. Then, our engineers will design the optimal solution based on your requirements. We will produce samples for your testing and confirmation. Finally, we will arrange mass production according to your confirmation.
