Description:

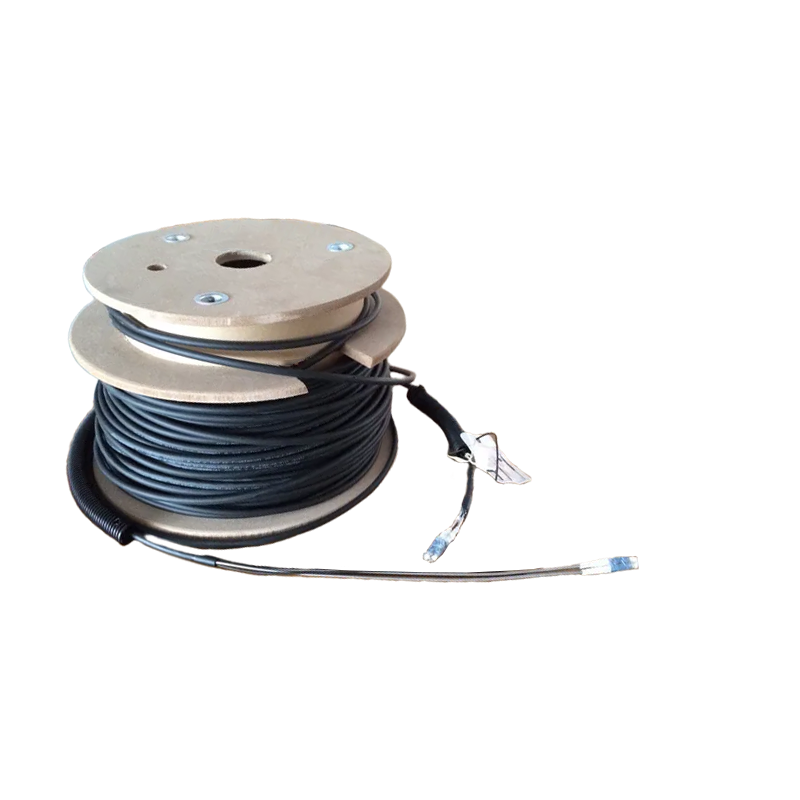

Engineered for mission-critical reliability in heavy industrial and harsh outdoor environments, this fiber patch cord is optimized specifically for Fiber-to-the-Antenna (FTTA) deployments.
Constructed with OS2 single-mode G.657.A1 bend-resistant fiber and terminated with LC UPC duplex connectors, the cord integrates a robust armored tube that delivers exceptional crush resistance while retaining excellent flexibility for easy routing. Encased in a flame-retardant LSZH (Low Smoke Zero Halogen) jacket with UV stabilization, it exhibits high resistance to industrial-grade chemicals, making it fully suitable for both indoor and outdoor industrial installations. As an outdoor protected branch cable, it provides enhanced durability to withstand the rigors of outdoor telecom infrastructure deployments.
Feature:
- Supports horizontal and vertical cabling for all common LTE/4G/5G wireless systems
- Fiber optic testing ensures insertion loss and return loss comply with industry standards
- Plug-and-play installation
- G.657.A1 optical fiber with minimum bend radius of 20/10D (dynamic/static)
- Spiral steel-armored breakout cable with rodent and bird resistance

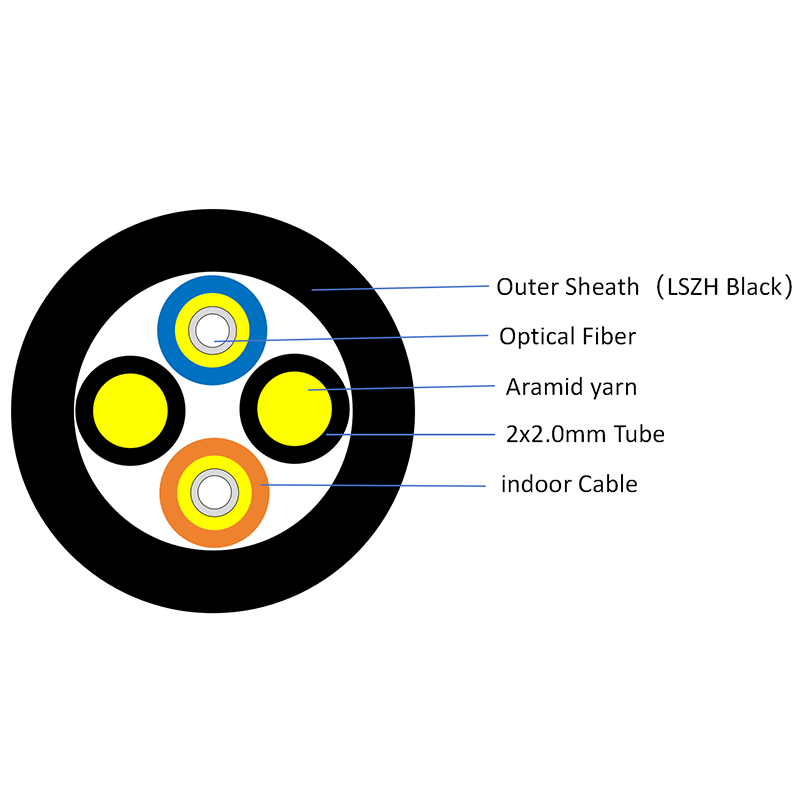

Cable Parameters:
| Fiber Count | Cable Outside Diameter (OD) (Outer/Inner) | Cable Weight (kg/km) | Tensile(N) | Crush (N/100mm) | Min. Bend Radius (mm) | Range of Temperature | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 2 | 7.0/2.0 mm | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10 D | -30-+70 |
Connector Specification:
| ITEM | PARAMETER |
| Connector type | LC to LC |
| Polish Type | UPC to UPC |
| Fiber Mode | OS2 9/125μm |
| Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Fiber Grade | G.657.A1 |
| Attenuation at 1310nm | 0.36 dB/km |
| Attenuation at 1550nm | 0.22 dB/km |
| Cable Jacket | LSZH |
| Armored Breakout Length (End A/B) | 0.03/0.34m |
| Operating Temperature | -20~70°C |
| Storage Temperature | -40~80°C |
