Description:
This fiber optic distribution box is a terminal device used to connect trunk optical cables and distribution optical cables. Its box can operate reliably under specified environmental conditions. After testing, the product can withstand a vertical pressure of no less than 500N, meeting the engineering design requirements.
Technical parameters:
| Model No. | SFDB-16C | Color | Black |
| Capacity | 16cores | Material | PP+Glass Fiber |
| Dimension(L*W*D,MM) | 380*243*130 | Flame retardant performance | Non-flame retardant |
| Protection Level | IP68 | Splitter | 2x1:8 |

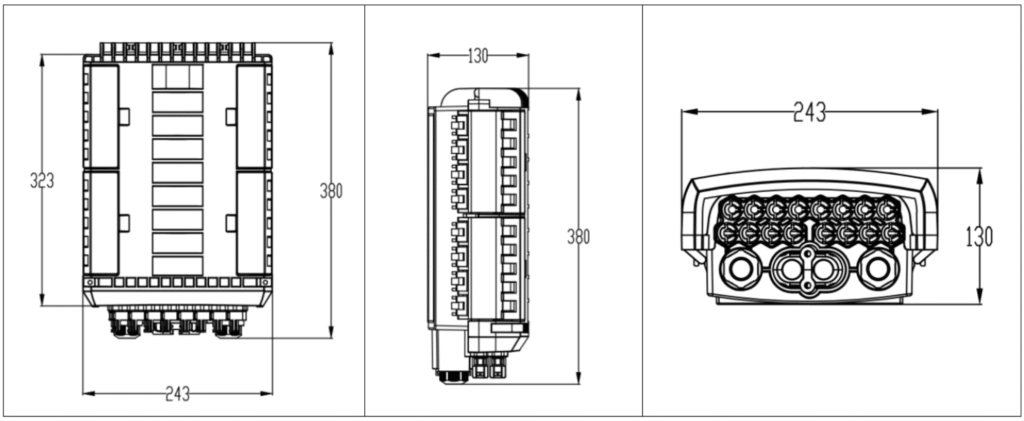

The dimension diagram:(mm)
Features:
- High-quality engineering plastics, high strength, suitable for various environments.
- Safety shaped lock design, simple operation, good waterproof performance.
- Welding and termination are separated, easy to install and maintain.
- The entrance panel can be installed with 2 1*8 tube optical cable splitters.

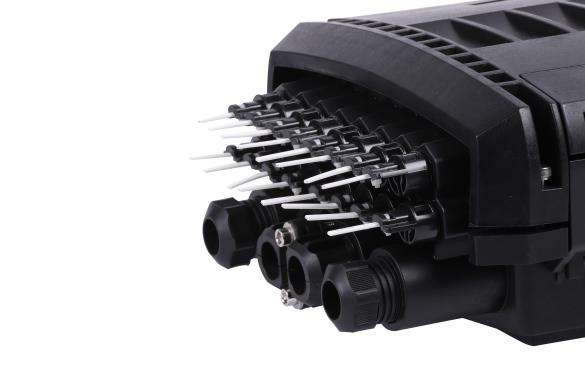

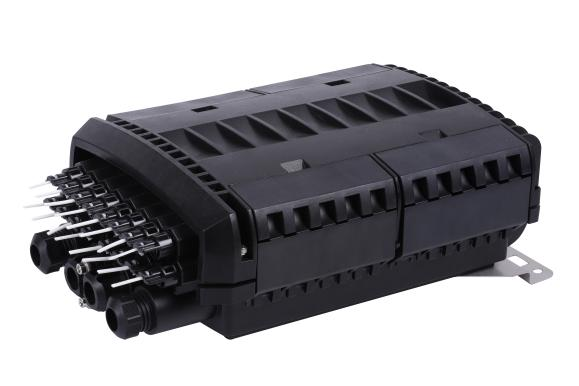

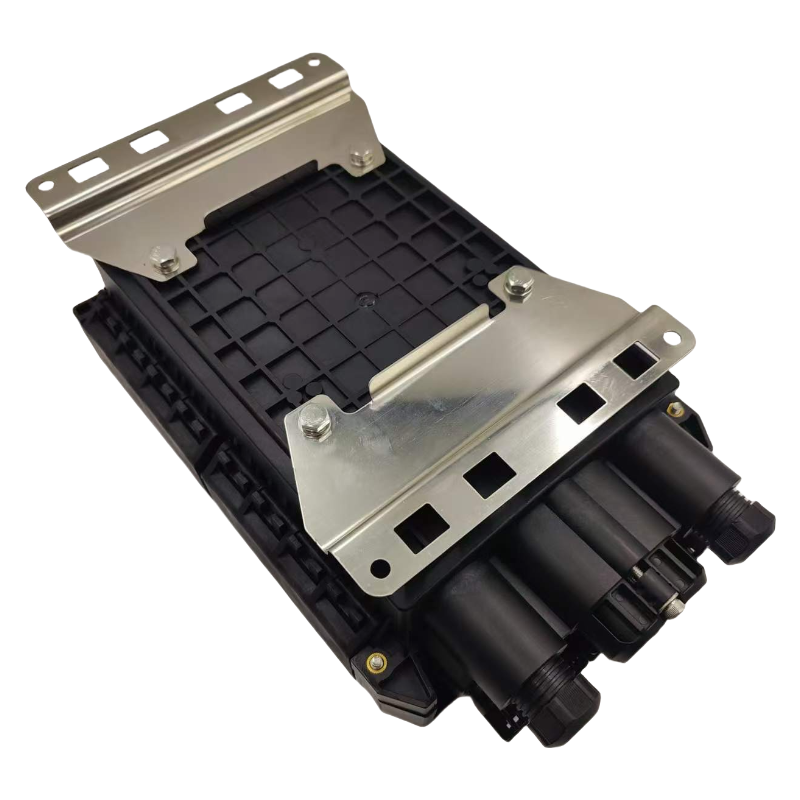

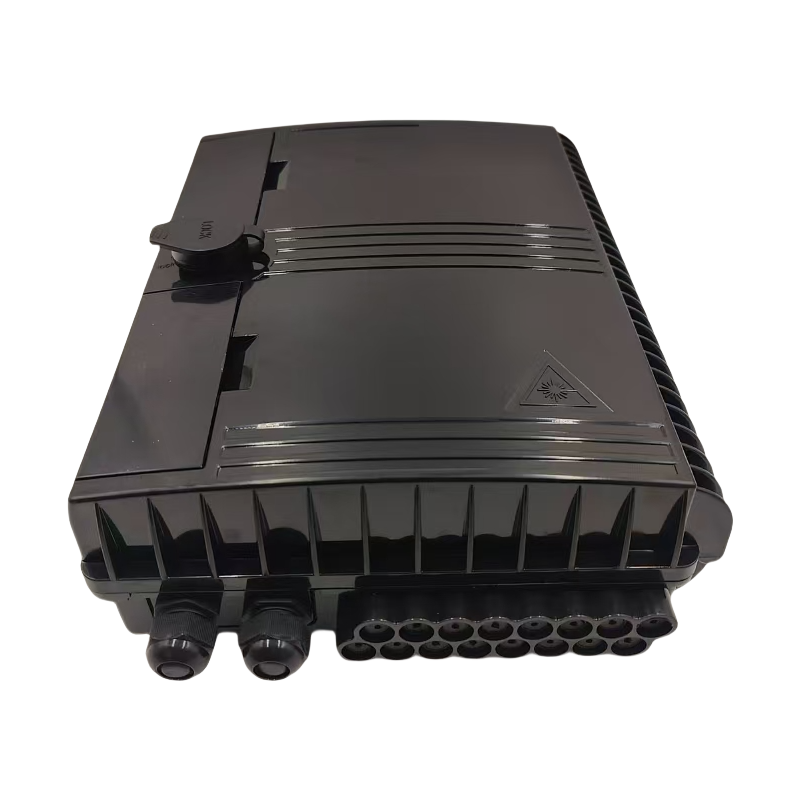

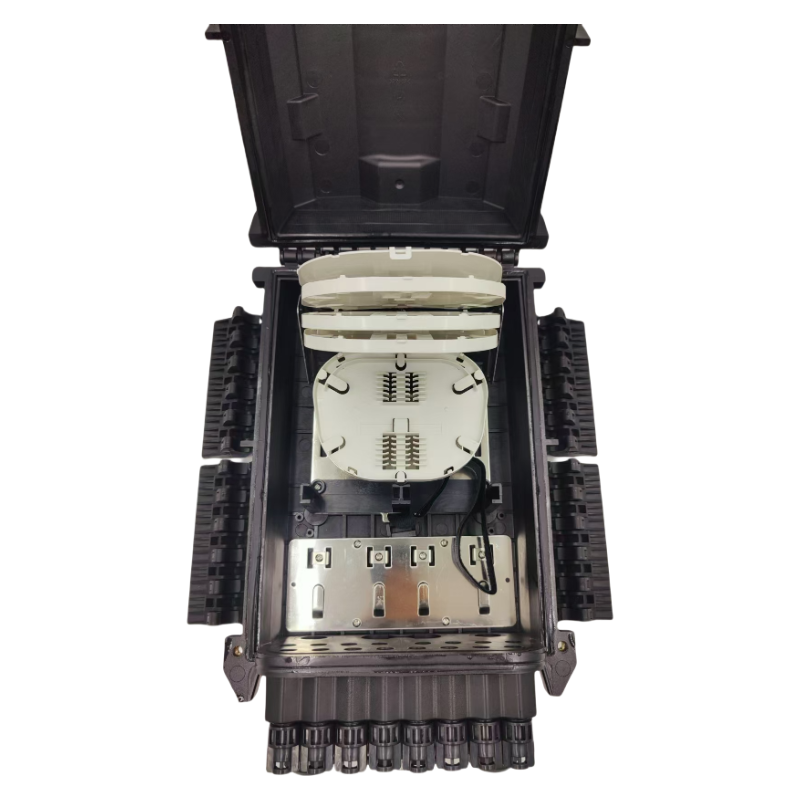

Pictures:
Package:
- Plastic bag size: 500*410mm
- Inner box with single corrugated size: 410*250*160mm
- Carton with double corrugated size: 515*425*340mm(4PCS/Box)
- Weight per carton：18.7KG
