Description:
It is designed for FTTx networks and can meet the access needs of 16 users at the same time. It can be spliced, divided, stored and managed in a suitable space. IP68 protection grade ensures that the equipment can operate stably in harsh environments.
Technical parameters:
| Model No. | SFDB-16A | Color | Black, Grey White.. |
| Capacity | 16cores | Material | PC+ABS, ABS,PC |
| Dimension(L*W*D,MM) | 320*210*125 | Flame retardant performance | Non-flame retardant |
| Protection Level | IP68 | Splitter | 2x1:8 & 1x1:16 |

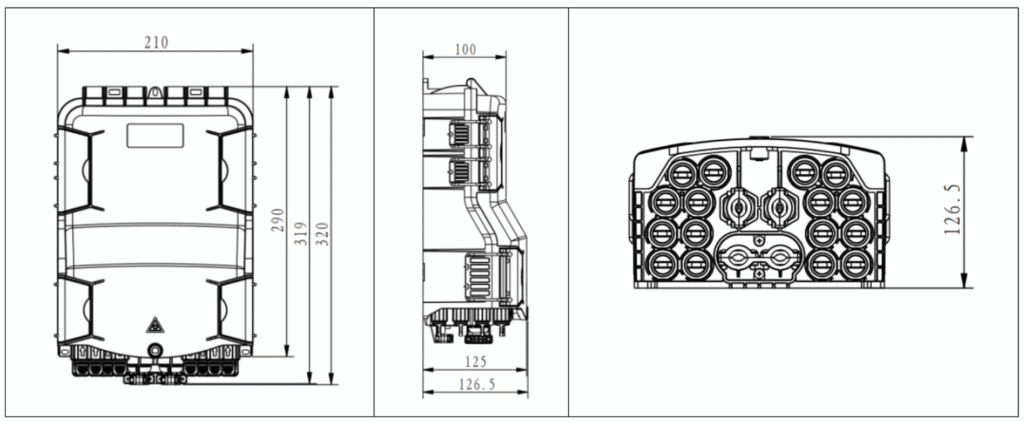

The dimension diagram:(mm)
Features:
- Made of ABS+PC engineering plastics, sturdy and durable;
- IP68 protection level, the box adopts a waterproof adapter, excellent waterproof and dustproof performance, suitable for indoor and outdoor natural environments;
- The box adopts a double-page design, easy to install and maintain, and the welding and termination are completely separated;
- The lower flap can be installed with a 1*8 tube splitter;
Package:
Inner box with double corrugated size:330*220*135mm
