Fiber optic patch panel is an integrated unit for fiber management, SOCT offer wall mounted fiber optic patch panel and rack mount ed fiber optic patch panels, these equipment function is to fix and manage the fiber optic cables inside the box as well as provide protection.Different models to fit for 12 core fiber,24 core fiber,36 core fiber,48 core fiber, 72 core fiber,96 core fiber,144 core fiber applications. They can be with different adapter interface including the SC, ST, FC, LC , etc. related fiber accessories and pigtails are optional.
Technical parameters:
MOQ：
5PCS
Packaging:
Carton box
Delivery Time:
5-30 working days
Brand Name:
SoctFiber
Place of Origin:
Jiangsu,China
Model Number:
SODF2U48F
Mounting:
19 inch standard rack-mounted
Color of Frame
Black
Output Adaptor:
FC,SC,ST,LC etc
OEM:
Yes
Detail Information:
Product model
SODF2U48F
Cable entry
4 port input
Size (W*D*H) mm
482*305*2U
Splice tray
2*24F per tray
Max capacity (cores)
48 cores
Quantity(pcs/Carton)
5PCS
Outer carton dimension (mm)
500*400*550mm /5PCS
Carton weight(kg)
29kg
Installed with
Pigtail(G657A1 ,1m) ,Adapter

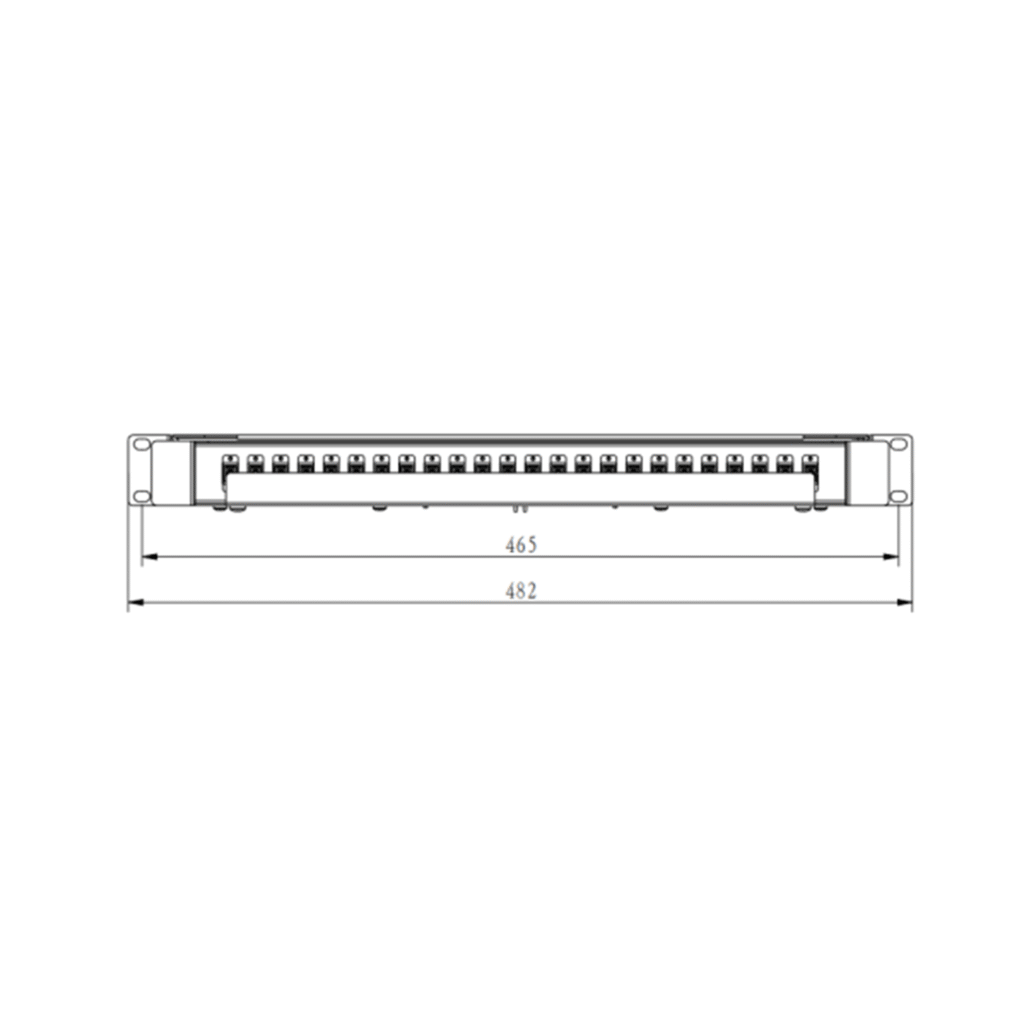

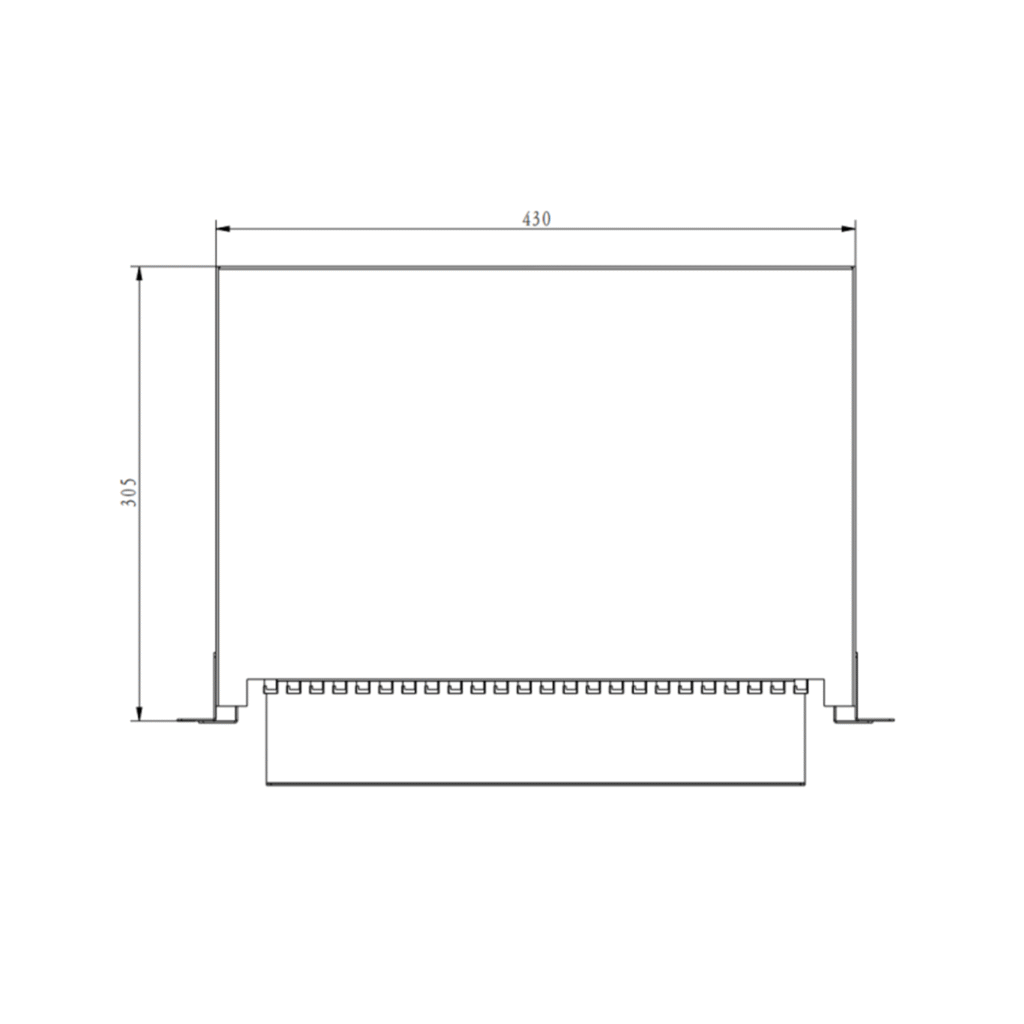

The dimension diagram:(mm)
Features：
Standard 19 inch structure, could be installed on various of standard racks.

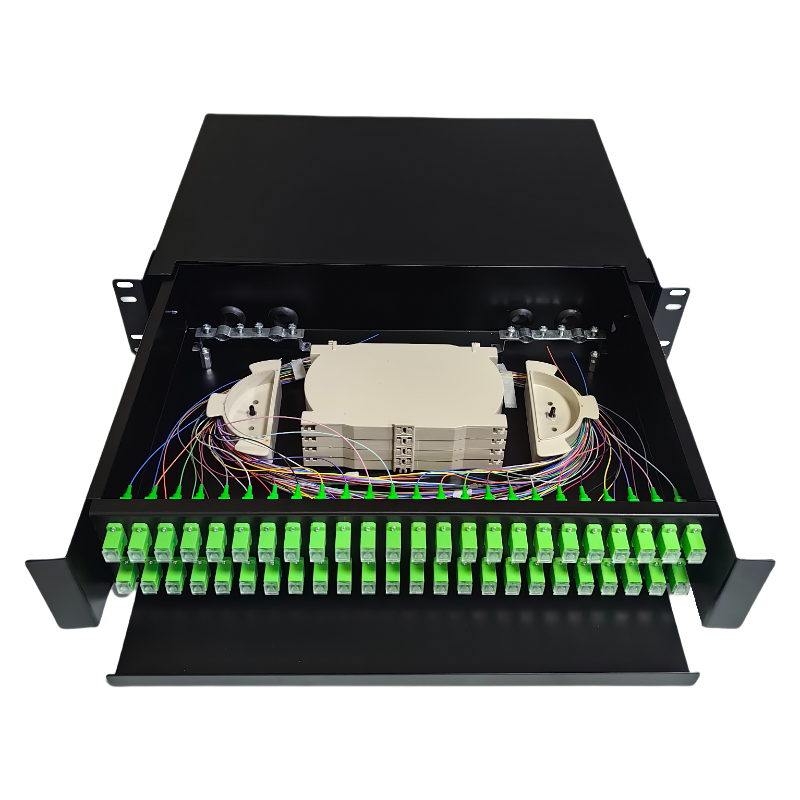

Drawer type for sliding flexibly as a easy operation design.
Frame plate is suitable for installing sorts of adapters such FC,SC,ST,LC,etc.
Three-in-One of fiber splicing wrapping &storage Distribution with smart configuration
Simple but elegant frame which is with average color painting and has enough tolerance for compact resistance.
