Description:
It is designed for FTTx networks and can meet the access needs of 16 users at the same time. It can be spliced, divided, stored and managed in a suitable space. IP68 protection grade ensures that the equipment can operate stably in harsh environments.
Technical parameters:
| Model No. | SFDB-16B | Color | Black, Grey White.. |
| Capacity | 16cores | Material | PC+ABS, ABS,PC |
| Dimension(L*W*D,MM) | 292*218*83.6 | Flame retardant performance | Non-flame retardant |
| Protection Level | IP68 | Splitter | 2x1:8 & 1x1:16 |

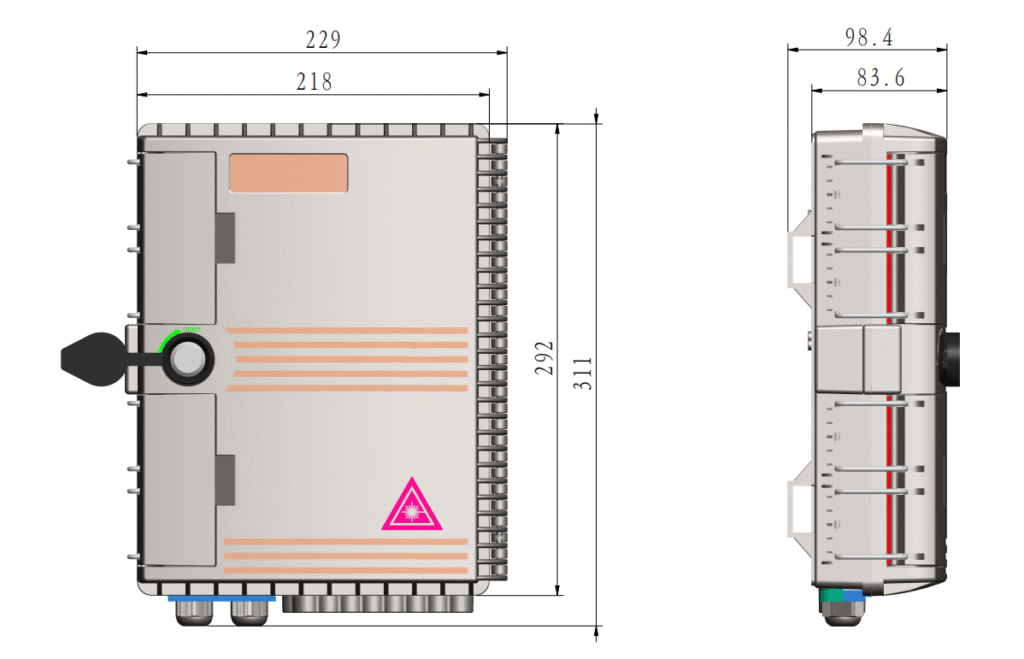

The dimension diagram:(mm)
Features:
- Made of ABS+PC engineering plastics, sturdy and durable;
- IP68 protection level, excellent waterproof and dustproof performance, suitable for indoor and outdoor wall mounting, pole mounting, high-altitude hanging and other occasions;
- Safety lock design, easy to operate;
- Equipped with layout record label;

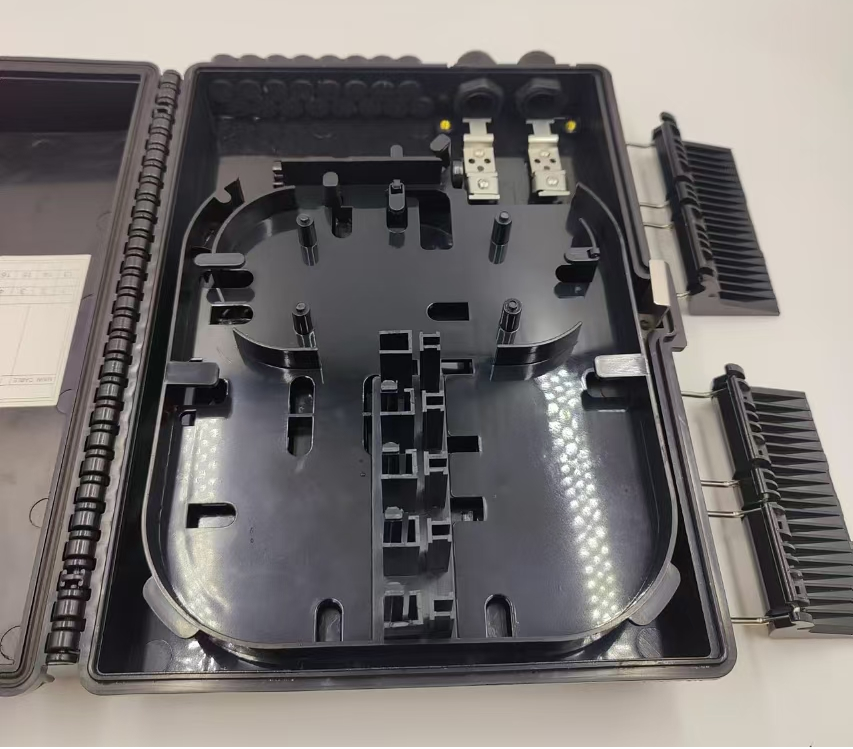

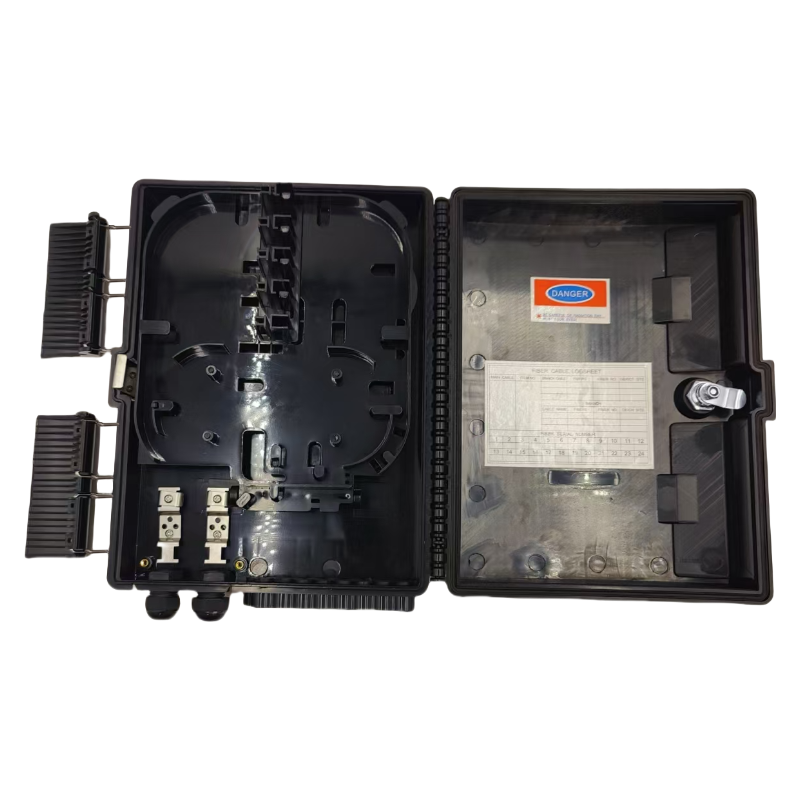

Pictures:
Package:
Inner box with double corrugated size: 325*255*130mm
