Description:
As a new economical solution, the outdoor waterproof optical terminal has demonstrated excellent performance in the field of optical fiber distribution. Compared with traditional products, it is easy to operate, has strong compatibility, and has flexible and diverse installation methods to meet the needs of different scenarios. Whether it is FTTH, FTTA or other harsh environments, this optical terminal can operate stably and provide users with reliable optical fiber access services.
Technical parameters:
| Model No. | SFTB-08A | Color | Black |
| Capacity | 8cores | Material | PC+ABS, ABS |
| Dimension(L*W*D,MM) | 282*112*92 | Flame retardant performance | Non-flame retardant |
| Protection Level | IP68 | Splitter | 1x1:8 |

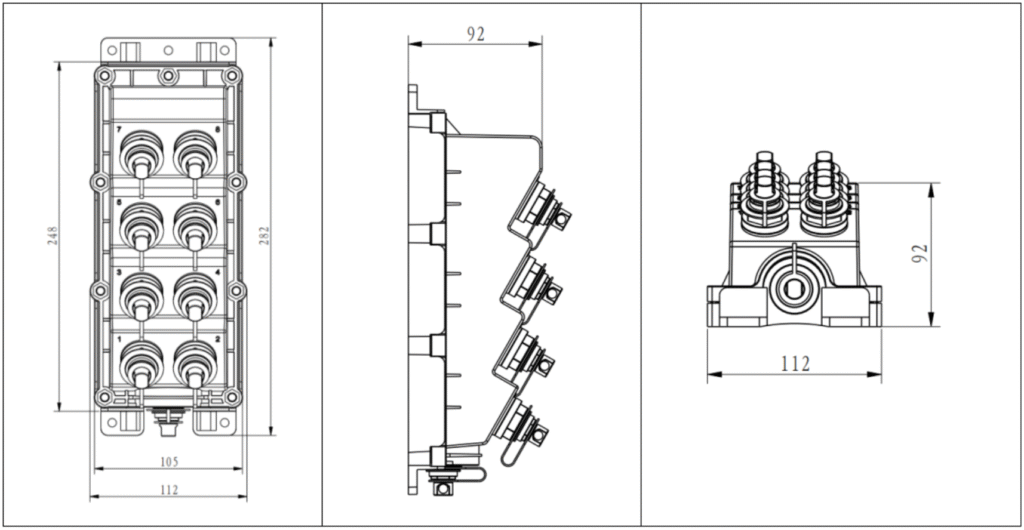

The dimension diagram:(mm)
Features:
- Supports multiple installation methods such as wall-mounted, overhead, and pole-mounted, suitable for different environments.
- Can directly connect optical fiber to user terminals without intermediate equipment, improving access efficiency.
- Adopts IP68 waterproof sealing, impact resistance, corrosion resistance, suitable for harsh environments.
- Adopts high-strength materials and tensile design to ensure stable operation of equipment and improve network reliability.

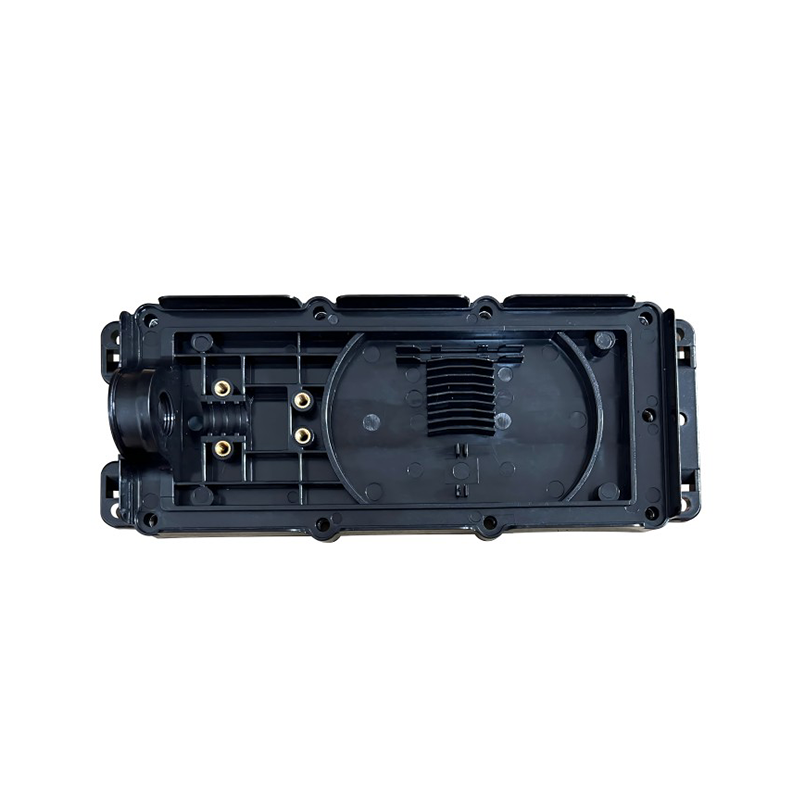

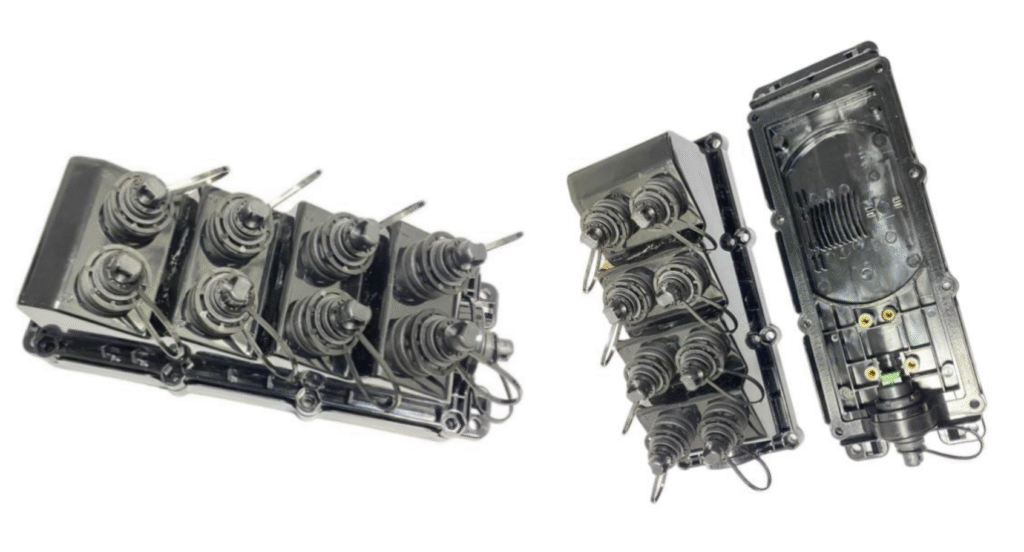

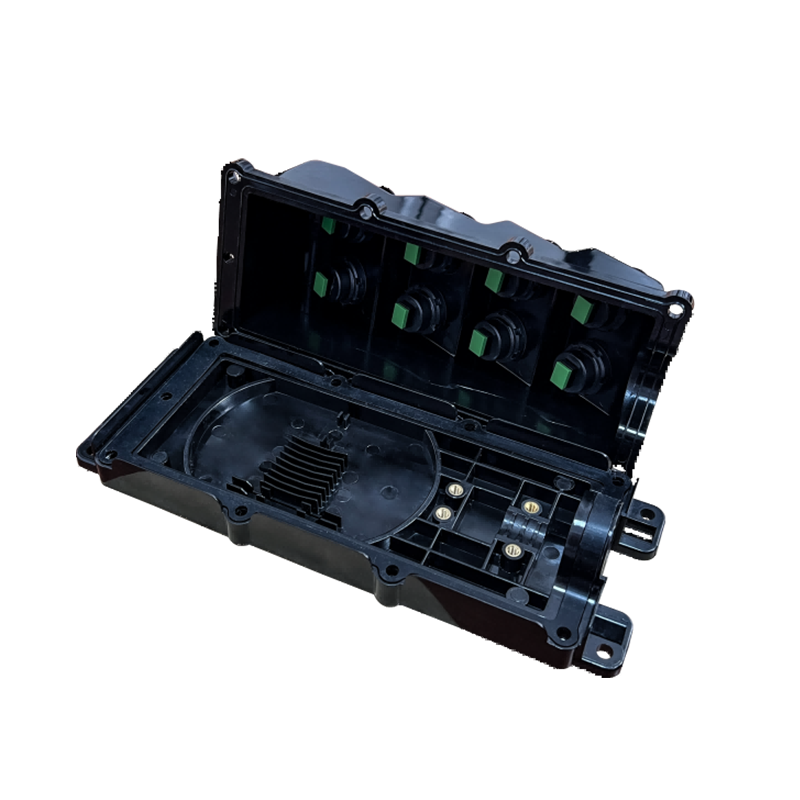

Pictures:
Package:
- Plastic bag size: 300*350mm
- Inner box with single corrugated size: 290*115*120mm
- Carton with double corrugated size: 595*310*500mm(20PCS/Box)
- Weight per carton：17 KG
